Beam type load cells are a cornerstone in the world of weighing technology, known for their accuracy, reliability, and versatility. These load cells are widely used across various industries, from manufacturing and logistics to agriculture and food processing. To fully grasp their importance, it’s crucial to understand their design, how they function, and the key considerations when selecting the right beam type load cell for your specific application. Additionally, we’ll explore the two primary types of beam load cells: shear beam and bending beam.
What Are Beam Type Load Cells?
Beam type load cells are precision instruments designed to measure force or weight by converting mechanical force into an electrical signal. These load cells are typically constructed in a beam-like shape, making them suitable for applications where the load is applied in a single direction. Their compact design and high precision make them ideal for use in confined spaces that require accurate weight measurements.
Design and Functionality of Beam Type Load Cells
Beam type load cells operate based on strain gauge technology. A strain gauge is a small, flat sensor that alters its electrical resistance when deformed by an applied force. This change in resistance is directly proportional to the applied load, which is then converted into an electrical signal that can be measured and recorded.
Key Components:
- Strain Gauges: Bonded to the surface of the load cell, these gauges detect the deformation of the beam under load by changing their electrical resistance.
- Beam: The main structural element that bends or shears under the applied load, causing the strain gauges to deform.
- Wheatstone Bridge: A specialized circuit used to convert the small changes in resistance into a measurable voltage output.
Types of Beam Type Load Cells:

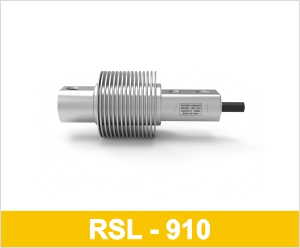

1. Shear Beam Load Cells
Shear beam load cells are designed to measure shear forces within the beam. When a load is applied, the beam deforms slightly, creating a shear strain that the strain gauges detect. These load cells are highly accurate and are often used in medium to high-capacity weighing applications.
Applications:
– Platform scales
– Conveyor systems
– Industrial weighing equipment
Advantages:
– High accuracy
– Durability in harsh environments
– Excellent performance under off-center loads

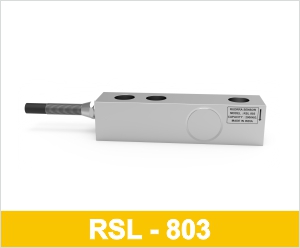

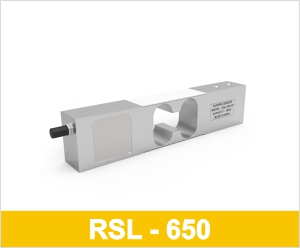

2.Bending Beam Load Cells
Bending beam load cells measure the bending force exerted on the beam. The load causes the beam to bend, and this deformation is detected by the strain gauges. Bending beam load cells are typically used in low to medium-capacity applications where high precision is essential.
Applications:
– Bench scales
– Small platform scales
– Precision industrial applications
Advantages:
– High sensitivity
– Compact design
– Suitable for low-capacity applications
Selecting the Right Beam Type Load Cell: Key Factors to Consider
Choosing the right beam type load cell is critical to ensuring accurate measurements, system reliability, and overall performance. Here are the key factors to consider when selecting the appropriate load cell for your application:
1. Load Capacity
Load capacity is a primary consideration when selecting a load cell. The load cell must be capable of handling the maximum load it will measure, plus a safety margin. Shear beam load cells are typically used for higher-capacity applications, while bending beam load cells are better suited for lower-capacity, high-precision measurements.
2. Accuracy and Sensitivity
Accuracy and sensitivity are crucial, especially in applications where even small measurement errors can have significant consequences. Shear beam load cells are known for their high accuracy, making them suitable for demanding industrial applications. Bending beam load cells offer high sensitivity, which is essential for precise measurements in lower-capacity applications.
3. Environmental Conditions
Environmental conditions play a significant role in load cell performance. For applications in harsh environments, such as those with high moisture, dust, or extreme temperatures, shear beam load cells are often the preferred choice due to their robust construction. Bending beam load cells, while also durable, are more commonly used in controlled environments.
4. Mounting and Installation
Proper mounting is essential for achieving accurate measurements. Shear beam load cells often come with threaded holes for easy mounting and are designed to handle off-center loads effectively. Bending beam load cells, due to their smaller size, may require more precise installation to avoid measurement errors.
5. Output Signal and Compatibility
It’s important to ensure that the load cell’s output signal is compatible with your weighing system. Most beam type load cells produce a millivolt signal that requires amplification or conversion by a digital weight transmitter or indicator. Compatibility with your system’s signal processing capabilities is crucial for accurate measurement and data interpretation.
6. Cost vs. Performance
Balancing cost with performance is key. Shear beam load cells are generally more expensive due to their higher capacity and robustness, but they offer superior performance in demanding applications. Bending beam load cells are typically more cost-effective for applications where lower capacity and high sensitivity are the primary requirements.
Conclusion
Beam type load cells, including shear beam and bending beam variants, are integral to the accurate and reliable operation of weighing systems across various industries. Understanding their design and functionality, along with the key factors involved in selecting the right load cell, is essential for ensuring optimal performance and durability. By considering factors such as load capacity, accuracy, environmental conditions, and mounting requirements, you can make an informed decision that aligns with your specific application needs, ultimately enhancing the efficiency and reliability of your weighing system.
