    Construction Machinery Load Cell

    What is Load Cell RSL 60048?

    Load cell RSL 60048 uses the strain gauge principle to measure force and displacement. It is created for use in applications where high accuracy, repeatability, and reliability are required. The design of this load cell allows it to be used with low-cost, non-magnetic materials such as stainless steel or aluminium. If appropriately treated, this type of load cell can also be used with ferromagnetic materials.

    Furthermore, Load cell RSL 60048 is suitable for use in harsh environments, including extreme temperatures, vibration, shock, dust, and humidity. Also, it has an overload protection feature that will prevent damage from occurring when excessive loads are applied.

    This product is available in two versions: one version is equipped with a digital output (RSL60048D) and another with an analogue output (RSL60038). In addition, there are different sizes available depending on your application requirements.

    Moreover, the Load cell RSL 60048 comes in three different configurations: single-axis, dual-axis, and tri-axial.

    Load cell RSL 60048 offers you the following advantages:

    • High sensitivity
    • Low drift
    • Wide measuring range

    Our organization has gained expertise in manufacturing a quality assured load cell including its newly launched model RSL-60048. This model is popular as construction machinery load cell. It can be used in weighting platforms also for high precision application. This load cell is specially made for dynamic load measurement. The offered load cells are manufactured under the expert supervision of our professionals using supreme quality raw material at our vendors' end. We also provide load cell in various capacities and specifications given by our buyers.

    Key Features :

    • The load cell RSL 60048 has excellent performance and is highly accurate. Its wide measuring range makes it ideal for industrial applications. Moreover, its high sensitivity ensures that even small changes in the measured load can be detected. Furthermore, this load cell has a fast response time making it ideal for applications requiring quick reaction times.

    Applications :

    • Industrial weighing systems
    • Belt conveyor scales
    • Food processing equipment
    • Check weighing scales

    Optional:

    • Digital Load Cell
    • Stainless Steel Structure

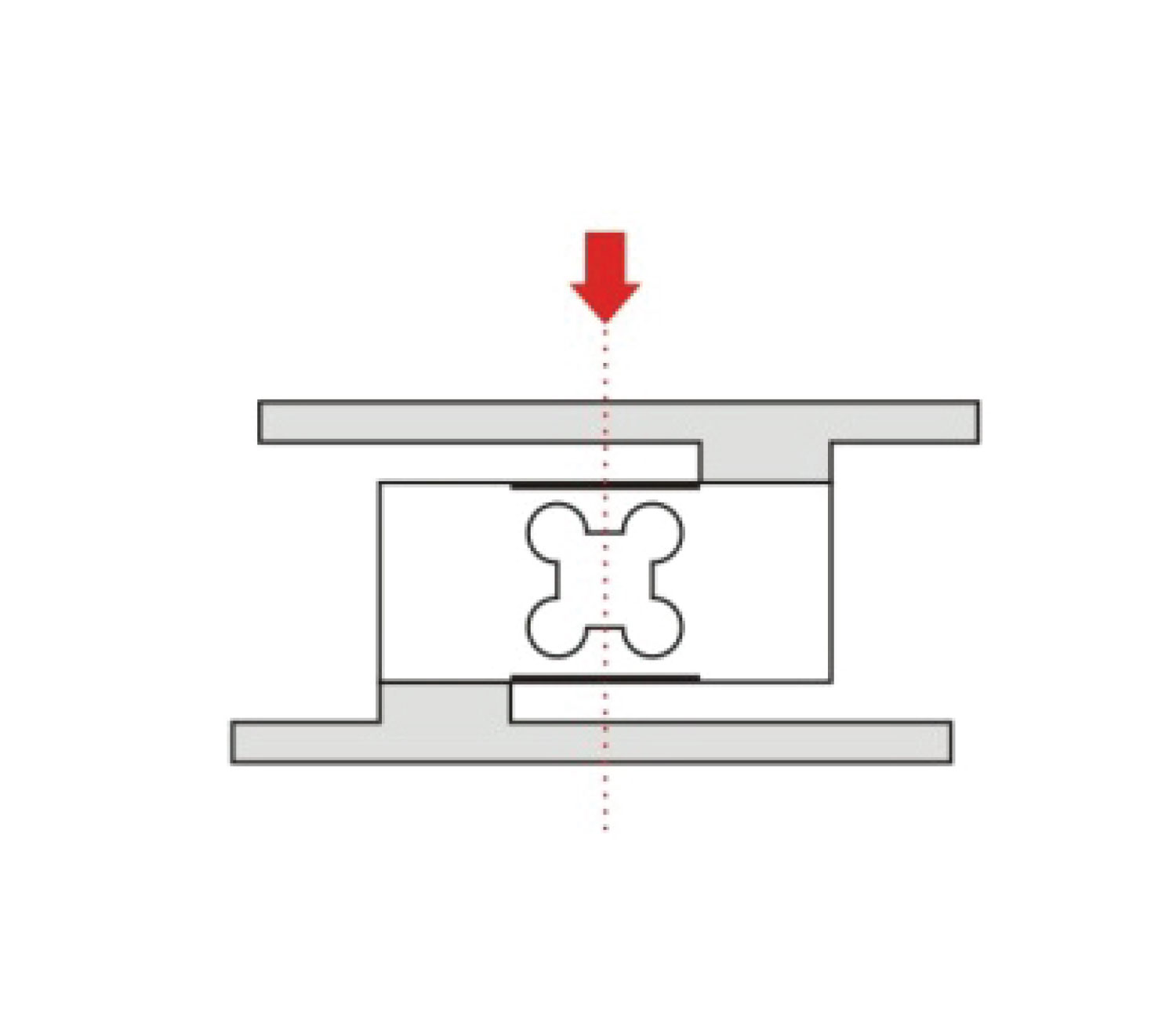

    Load Application Layout :

    Cable Connection Details :

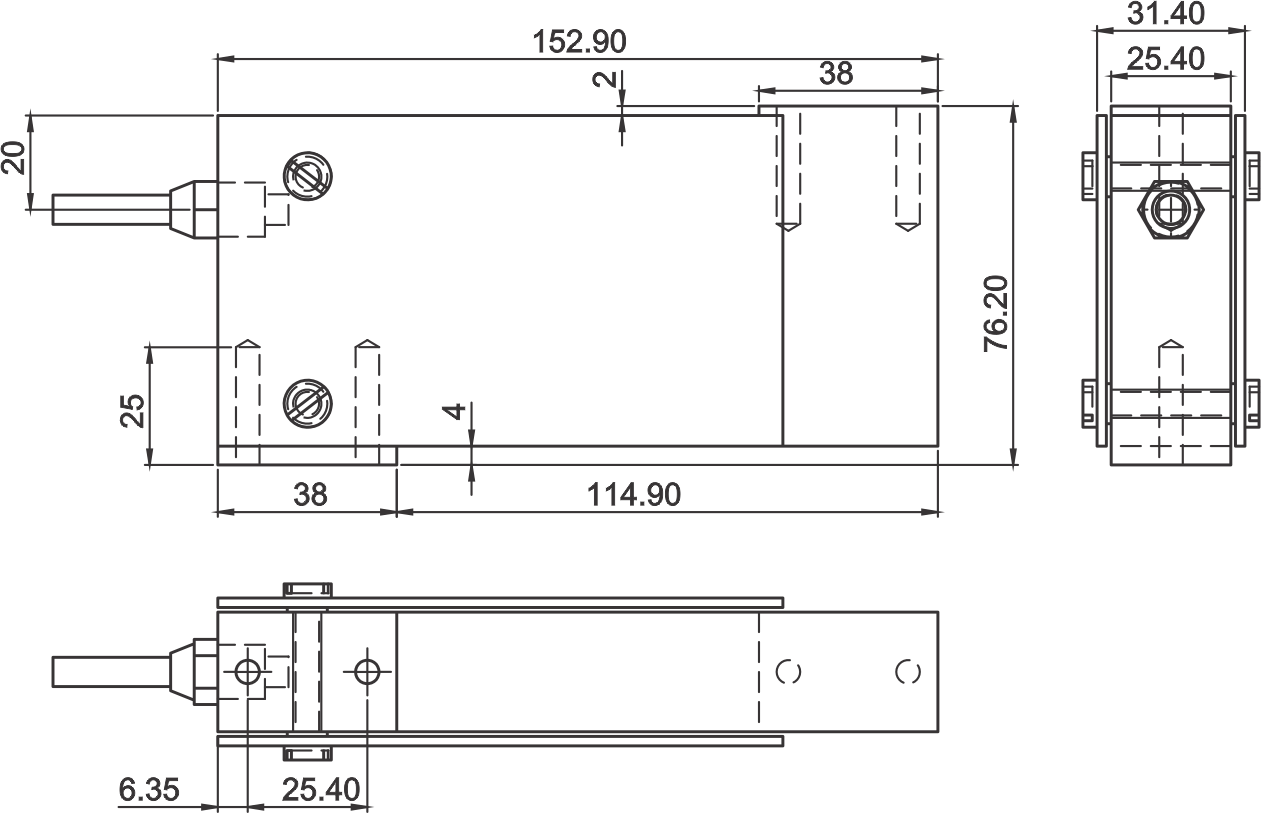

    Dimensions :

    Parameters : (Analog Load Cell)

    Related Load (kg.) 22.5,45,90

    Precision
    C3
    Composition Error
    0.02
    Rated Output (mv/v)
    2.00 ± 2%
    Non-Linearity (%FS)
    0.017
    Hysteresis (%FS)
    0.02
    Repeatability (%FS)
    0.01
    Creep (%FS/30min)
    0.02
    Zero Balance (%FS)
    ± 2
    Input Resistance (Ω)
    395 ± 5
    Output Resistance (Ω)
    350 ± 5
    Insulation Resistance(MΩ)
    ≥20000(10VDC)
    Excitation Voltage (V)
    5~12 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -35~+65°C
    Temp. Effect on Zero (%FS/10°C)
    0.0017
    Temp. Effect on Span (%FS/10°C)
    0.0014
    Safe Overload (%FS)
    120
    Ultimate Overload (%FS)
    150
    Defend Grade
    IP67
    Cable
    6mm, 5.0mtr
