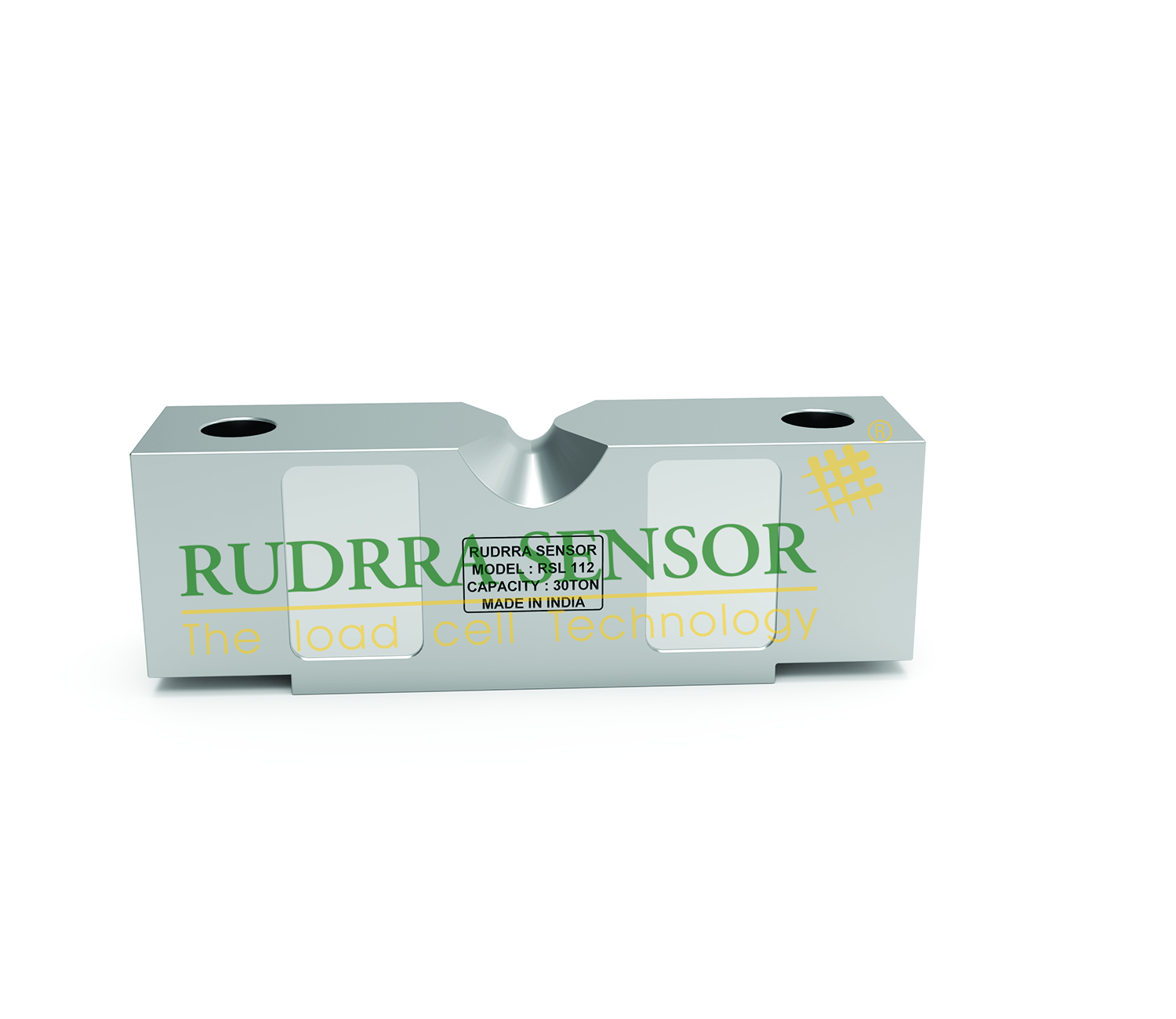

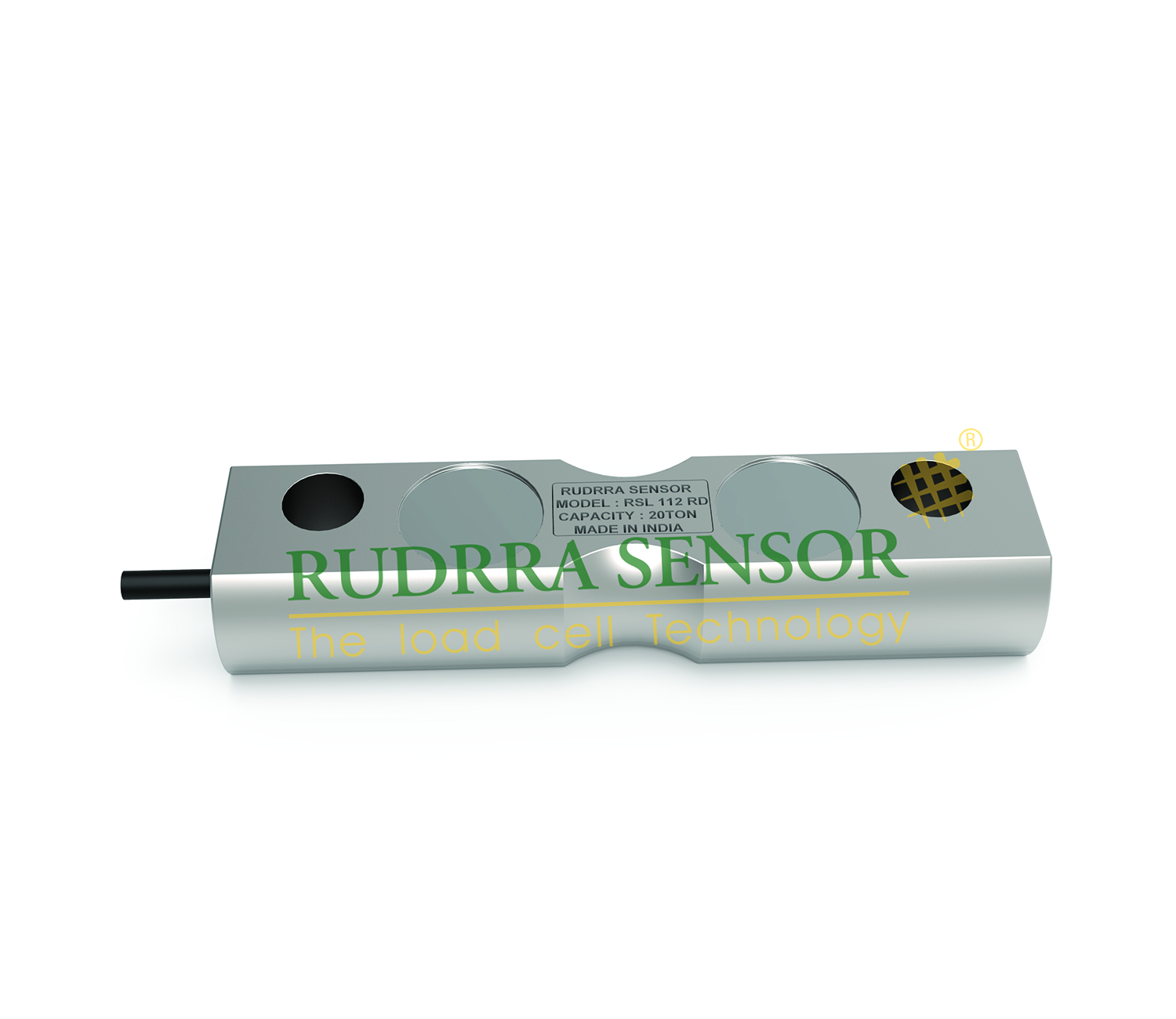

Best Double Ended Shear Beam Load Cell

The compressive forces are measured using load cells with two shear beams, which are mounted on a platform. The fact that it is a variation on the shear beam load cell does not diminish the fact that it is capable of supporting a substantially greater amount of weight. In order to determine the amount of force applied, a twin shear beam load cell is employed.

Double shear beam load cells?

Model VC3500 stainless steel construction with a double shear beam, totally welded and hermetically sealed for total environmental protection in harsh environments (IP68 & IP69K). It has received approval from ATEX, IECEx, and PESO, and it has a capacity of up to 200,000 kilograms. Dust zones 20, 21, and 22 do not necessitate the installation of safety barriers. There are other choices for customized cable lengths, Purulence coatings, and high-temperature variants of the cable.

Features of Double shear beam load cells?

• Alloys and stainless steel are used.
• Truck scales, tanks, and hoppers are all examples of applications.

Design and accuracy of Double shear beam load cells?

For the high-temperature Model T38, which is mostly utilised in the metals industry and foundries, tank and vessel weighing is the most common use for the instrument.

Temperature of Double shear beam load cells?

When it comes to high temperature metal industry applications, the type T38 is a "fit and forget" option that can withstand continuous operation up to 150°C. It has a high degree of precision and long-term reliability.

Adding the MasterMount® and VC3500 Weighing Assembly to our double shear beam load cells makes them even more effective. To assist you in determining the appropriate weight for your application, rugged junction boxes and high-precision measuring electronics are also available to you.

Technical drawings and 3D CAD files (for example, in STEP format) can be obtained from us by engineers who are specifying load cells for new equipment, and installation drawings and technical manuals can be obtained from us by site engineers who are responsible for system installation.
