What Is The Rs 10 cell load Amplifier?
A load cell electronic equipment could be a device that regulates excitation voltage to the gauge circuit and converts the mV output into another signal that's a lot of friendly to the users. Signal generated by load cell electronic equipment is low strength signals and should not work with alternative elements of the system like PLC, microprocessors, and DAQ( information acquisition modules).
So, the conclusion is that RS ten load cell electronic equipment works comprises excitation voltage, noise filtering, signaling conversion, and signal amplification.
How does The RS 201 Load Cell Amplifier work?
Most of the signals created by a load cell are going to be in mV(millivolt). A load cell electronic equipment converts the mV signal into a additional powerful signal like 4-20 mA, 0-10 VDC, ±10 VDC, RS 232, RS 485, and USB. it'll would like extra power.
Amplifying the signal doesn't cause the core information to alter and it's one among the notable aspects. you'll additionally say that it doesn't produce any inaccuracies within the measured worth
The process of changing or creating changes to the signal is named signal acquisition. There area unit many varieties of different signals, conditional ways, that's filtering, linearization, etc. It entirely depends on the necessities of the projects(hardware augments).
Analog Amplifier
Load Cell Amplifier
This product are widely demanded for the several industrial applications such as to interface load cell for Controllers, PLC Systems and Digital indicators having standard analog inputs which can be current or voltage. These are also known as load transmitter. These are fabricated using the supreme quality raw stuff. Our products are highly accepted and admired by users due to its highly durable service life, unmatched quality, dimensional accuracy, easy use and installation.
It is utilized to transform the signals of one load cell to another remote device which is attuned with process control system. The measuring gauge of the existing device starts with zero to assure the accuracy level; Normal output of the presented apparatus is between 0 to 10 volt levels. It is frequently utilized in control systems and weighing systems. The all technical details about the concern appliance is given in the below table. This Load Cell Amplifier Module is design in such a way that, It will give the best output results.
Download PDf File
Key Feature :
This design is used worldwide because it is easily available through the website that is www.rudrra.com, which provides easy shipping and less costly
It is very compact and lightweight and can be fitted anywhere where you want.
It is less costly as compared to other rudrra.com provides you with cheap value and easy shipping.
It can be mounted on DIN rail, a DIN rail is special equipment used to mount various types of circuit breakers and it is mounted on the wall
Application :
Signal Conditioner- it is used to covert low-level current to high-level current, signal conditioning includes voltage or current limiting and anti-analyzing.
It also converts small mV signals to high like- small to 0-10 VDC.

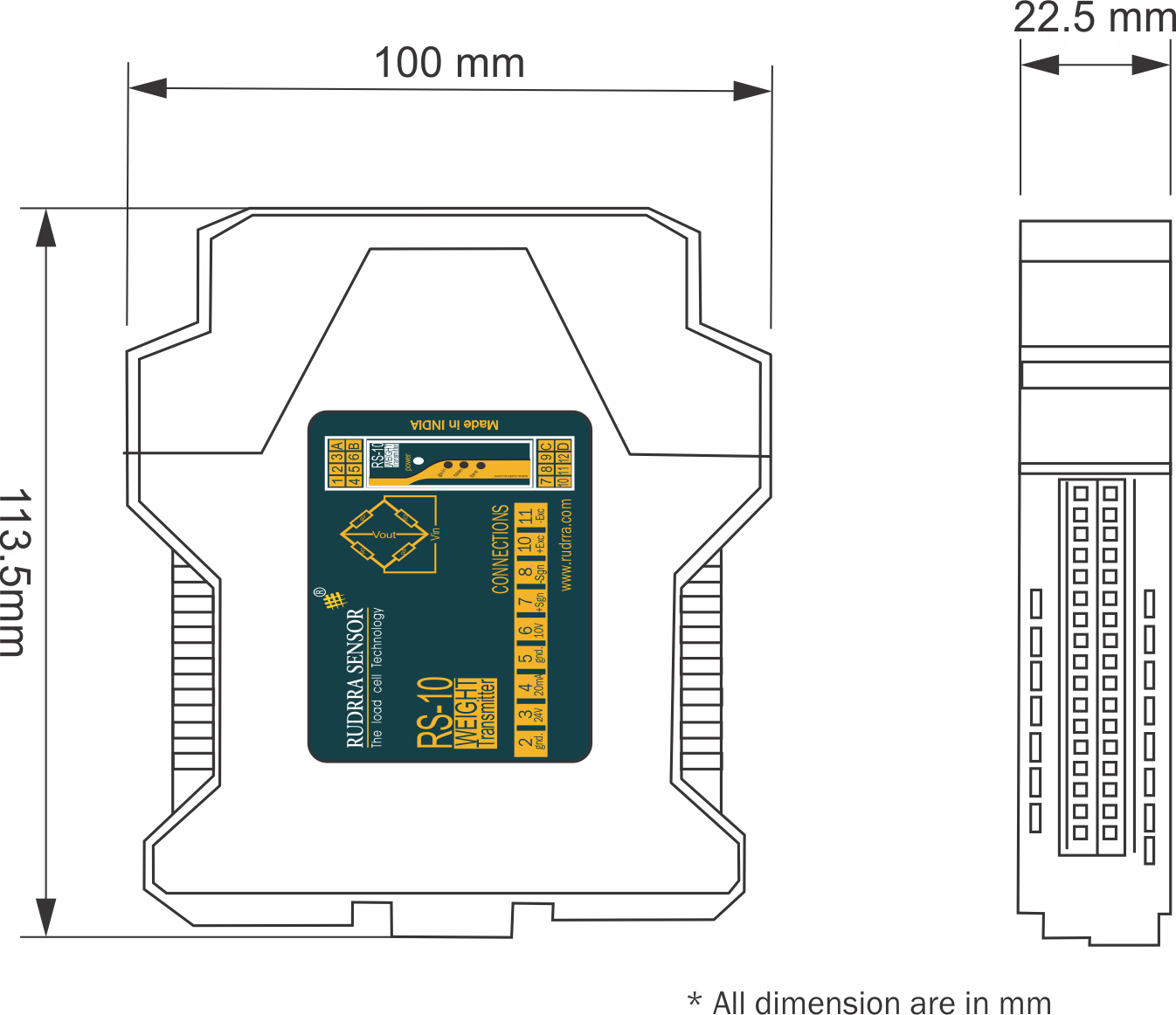

Dimensions :
