    Two Hole Load Cell

    Best Quality RSL-650 in India at Affordable Prices

    Among the most often used forms of RSL 650 load cells in the weighing business, a beam load cell is one of the most common. There are a variety of various sorts of compression and tension that may be used. When it comes to RSL 650 load cells, there is no question that they are the most widely used on the market today.

    When a weight or force is applied to it, the structure resembles a cantilever and bends slightly. Typically, one end is linked while the other is left unattached, much like a diving board or hammock; the latter is more comparable to a hammock in appearance. Furthermore, RSL 650 beam load cells are often classed based on whether they measure force or weight, among other things. It is necessary to employ a bending beam cell in order to identify the degree of bending distortion, and a shear beam cell in order to detect the degree of shear distortion.

    The RSL 650 Two Hole Load Cell by Rudrra Sensor is a brand-new device. We make every effort to completely please our customers by providing them with high-quality products and services. Our product may be used in a wide range of different situations. Because of our extensive expertise and abilities, we are able to create and supply our products in any form or size that our customers need.

    ABOUT US

    In addition to designing, manufacturing and supplying high quality RSL 650 in India and abroad, Rudrra Sensors is the best manufacturer and supplier of high and premium quality load indicators and load cells. Our RSL 650 and other sensors are both innovative and long-lasting, with no negative consequences. Get in touch with experts to learn more about our company and our products.

    When you contact us to buy load cells or any other products like RSL 650, there is no restriction on what you may talk about the product quantity.

    Contact us if you have any questions or concerns of any kind.

    Features :

    • Single-point load measurement capability when the load is off-center
    • Cell phone that is low-cost and discrete
    • Anodized aluminum alloy with a colourless finish
    • Containers that are glued shut

    Applications :

    • Scales for counting and mailing
    • Weighing Scales for Verification (Recommended platform size : 400x400mm)

    Optional :

    • Stainless steel structure

    Load Application Layout :

    Cable Connection Details :

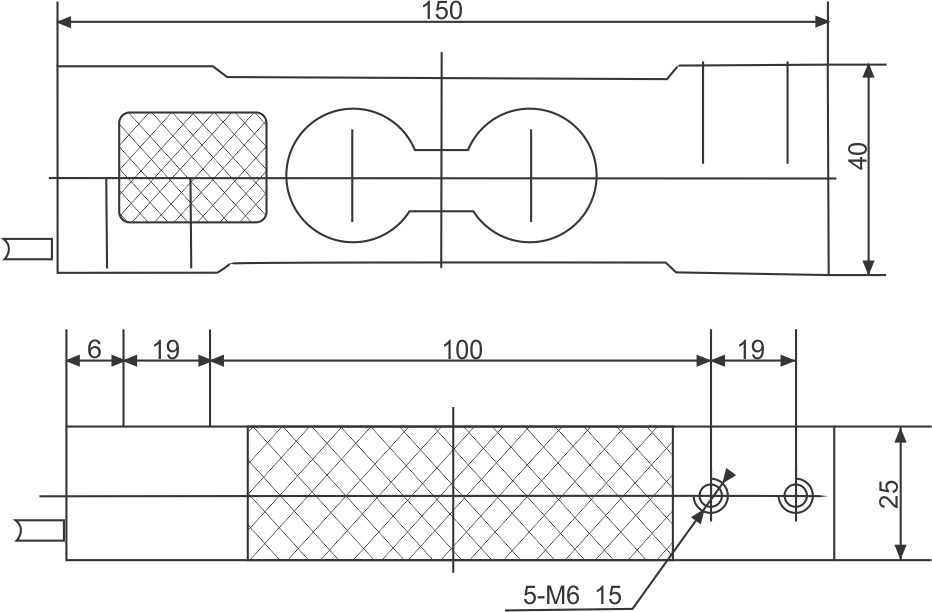

    Dimenstions:

    Dimenstions :

    Related Load (kg.) 5, 10, 15, 20, 50, 100, 200

    Precision
    C2 / C3
    Composition Error
    0.03 / 0.02
    Rated Output (mv/v)
    2 ± 0.2
    Non-Linearity (%FS)
    0.03 / 0.017
    Hysteresis (%FS)
    0.03 / 0.02
    Repeatability (%FS)
    0.01
    Creep (%FS/30min)
    0.02
    Zero Balance (%FS)
    ± 1
    Input Resistance (Ω)
    400 ± 10
    Output Resistance (Ω)
    350 ± 2
    Insulation Resistance(MΩ)
    ≥5000(100VDC)
    Excitation Voltage (V)
    5~12 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -35~+65
    Temp. Effect on Zero (%FS/10°C)
    0.03 / 0.017
    Temp. Effect on Span (%FS/10°C)
    0.03 / 0.017
    Safe Overload (%FS)
    120
    Ultimate Overload (%FS)
    150
    Defend Grade
    IP67
    Cable
    4mm, 3mtr
