    Elevator Overload Sensor

    Overload Sensor

    The Overload sensor (1:1) intelligent wire rope sensor is an easy and precise solution for controlling the load in traction lift. It is quick easy to install and calibrate (5 mins.) through the diameter for the ropes makes it the perfect. solution for lift modernizations in which the capacity is less than 999 Kg.

    Features

    • Automatic calibration using the rope diameter
    • Quick and easy installation
    • Universal clamps for all types of rope distribution
    • 2 programmable relay output for Full load & Overload
    • Inbuilt seven segment display to show value up to 999 Kg
    • Internal data memory to store Parameter
    • 2 keys for programming all parameters

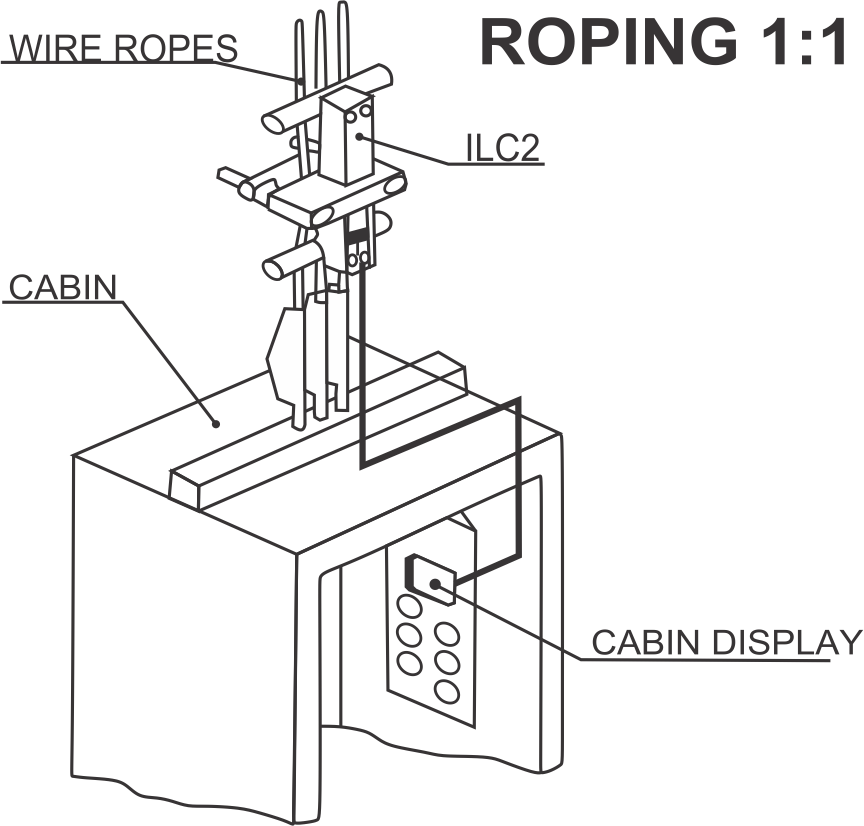

    • Suitable for 1:1 roped installations
    • Integrated SW to correct weight increases due to compensating chain

    Specification :

    • Supply Voltage : 24-48 VDC
    • Disabling input : 24-230 VAC/DC
    • Relay Contacts : 250VAC 3A
    • Operating Capacity (RC) : 3500 kg
    • Safe Load : 150% RC
    • Operating Temperature : -100C/500C

    Dimensions :
