    Shackle Type Load Cell

    Shackle Type Load Cell

    India’s Best RSL 305 Manufacturer and Supplier

    A force transducer is what a load cell is. In other words, it turns a force such as tension into an electrical signal that can be measured and standardized. Rudrra Sensors, a top-rated RSL 305 manufacturer in India, offers its customers a compact design of the Shackle Type Load Cell RSL 305, which is available in two sizes. We are offering these cells in both conventional and custom manufactured configurations, depending on the needs of our customers and their requirements.

    All of our load cells are rigorously tested on a variety of factors to ensure that they have enough bearing capacity, working capacity, and a variety of other characteristics. There are two types of this crane scale in demand: the 100 ton Crane Scale and the 150 ton Crane Scale. The capacities of the S type load cells that we can provide range from 25kg to about 30 tones, with the majority of them utilizing metal foil strain gauge technology.

    They are a popular choice for applications since they are accurate and have a small footprint in terms of design elements. Installation of S type load cells using rod ends or load buttons results in outstanding performance in both tension and compression applications, regardless of the application.

    ABOUT US

    The RSL 305 that are available at Rudrra Sensors are of top quality. Made from the finest raw material and designed to last long, we guarantee optimum functionality of our products. At Rudrra, we design, develop and supply custom made and powerful RSL 305 at the best rates.

    Browse through our website to learn more about the range of products that we offer in India and across the world. If you have any doubts, questions, or queries, then feel free to contact us at any time.

    Contact us if you have any questions or concerns of any kind.

    Key Features :

    • Sealed for the Environment
    • Available capacities range from 1.5, 2, 3, 5, 7.5, 10, 15, and 20 TF
    • On request, we may produce a high-temperature variant.
    • On request, standard output (3.0 0.25 percent) can be provided.

    Applications :

    • Mechanical scales are being converted to electronic scales.
    • Weighing of tanks, hoppers, and bags
    • Tension and/or compression dynamometers for measuring force and compression
    • Scales for hanging and cranes
    • Industrial Automation is a term that refers to the automation of industrial processes.

    Optional :

    • Digital Load cell
    • Stainless steel structure
    • Customize also available

    Load Application Layout :

    Cable Connection Details :

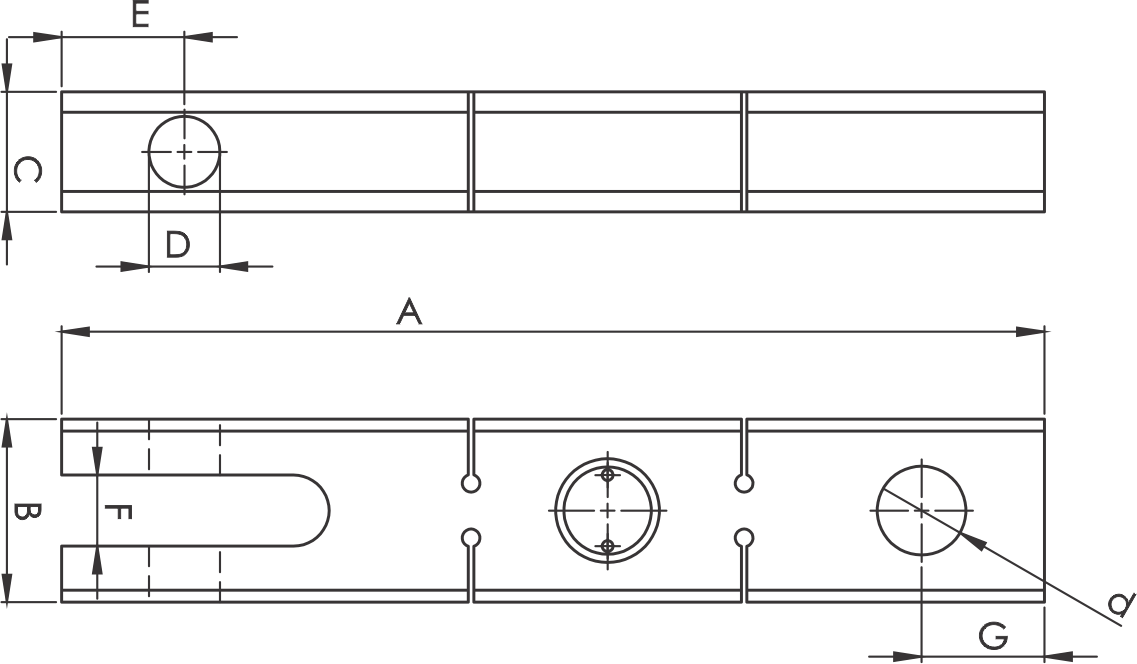

    Dimensions :

    CAPACITY

    A

    B

    C

    D

    d

    E

    F

    G

    1t, 2t, 3t

    260

    50

    40

    25

    26

    30

    22

    30

    5t

    360

    67

    44

    26

    32.5

    45

    26

    45

    10t

    390

    75

    52

    36

    40

    45

    30

    45

    20

    430

    120

    70

    45

    60

    60

    60

    60

    50t

    600

    170

    120

    85

    85

    100

    80

    90

    Parameters : (Analog Load Cell)

    Related Load (Ton) 1 / 1.5 / 2 / 5 / 7.5 / 10 / 20

    Precision
    C1
    Composition Error
    + 0.03
    Rated Output (mv/v)
    2.0 ± 0.004
    Creep (%FS/30min)
    ± 0.03
    Zero Balance (%FS)
    1.0
    Input Resistance (Ω)
    390 ± 10
    Output Resistance (Ω)
    350 ± 2
    Insulation Resistance (MΩ)
    5000
    Excitation Voltage (V)
    5~12 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -10~+40
    Temp. Effect on Zero (%FS/10°C)
    + 0.023
    Temp. Effect on Span (%FS/10°C)
    + 0.017
    Safe Overload (%FS)
    150
    Ultimate Overload (%FS)
    200
    Defend Grade
    IP67
