    Tension Link Load Cell

    We Are a Leading Supplier of RSL-306 in India

    The S-Type load cells, which are both low-cost and high-performance, can be utilized in a wide range of applications, including weighing and general force measurement, among others. For electrical connection purposes, they also come with a 6-foot strain-relieved cable, which includes pigtail leads that have been stripped and tinned for easy assembly.

    Rudrra Sensors is a well-known supplier of high-quality tension load cells in Ahmedabad, India, that comes highly recommended for both its services and its products. When it comes to measuring force and tension, the Force Measurement of RSL-306 Tension Dynamometer is the instrument of choice. The use of high alloy tool steel construction ensures that the product is both durable and safe. External moment effects of RSL-306 are reduced and safety and accuracy are improved by using perpendicular loading holes in the design of the component.

    ABOUT US

    Rudrra Sensors is one of the leading and top rated RSL 306 manufacturers and suppliers in India and Worldwide. Get in touch with us to learn more about RSL 306 and other load cells and sensors that we create and supplier in the market.

    We provide high and premium grade load cells and indicators that are both manual and automatic tare controls. We give a product that is both innovative and long-lasting, with no negative consequences.

    When it comes to buying RSL 306 from Rudrra Sensors, there is no restriction on what you may talk about the product on this number. In addition, we also deliver a product of high quality.

    It is possible to reduce the impacts of external moments by designing perpendicular loading holes, while also improving safety and accuracy. In addition, our (website name) manufactures and supplies high and premium grade load indicators that are both manual and automatic tare controls. In the field of precision manufactured load cells, pressure transducers, and load indicators, Load Masters is one of the top manufacturers and suppliers in the world. We give a product that is both innovative and long-lasting, with no negative consequences.

    There is no restriction on what you may talk about the product on this number. In addition, we also deliver a product of high quality.

    Contact us if you have any questions or concerns of any kind.

    Key Features :

    • There are capacities ranging from 2 Tf to 300 Tf.
    • This load cell is small and lightweight, making it easy to transport
    • Ruggedness and safety are ensured by the use of high alloy tool steel construction.
    • The design of perpendicular loading holes aids in the reduction of external moment effects and the improvement of safety and accuracy.
    • An optional high-temperature variant for foundry applications can be made available upon request upon request.

    Applications :

    • To measure rope tension, insert a link into the line and measure the tension.
    • In order to determine the hauling force of the vehicles and ships
    • Force Measurement Tension Dynamometer is a type of instrument that measures force and tension.
    • Hanging Scales and Crane Scales
    • A variety of material-handling apparatuses
    • Borehole pull tests, tugboats (overload detection, cable force testing, drag for measurement) are examples of tests that can be performed.
    • Cargo handling at shipyards is a specialized field.

    Optional :

    • Digital Load cell
    • Stainless steel structure

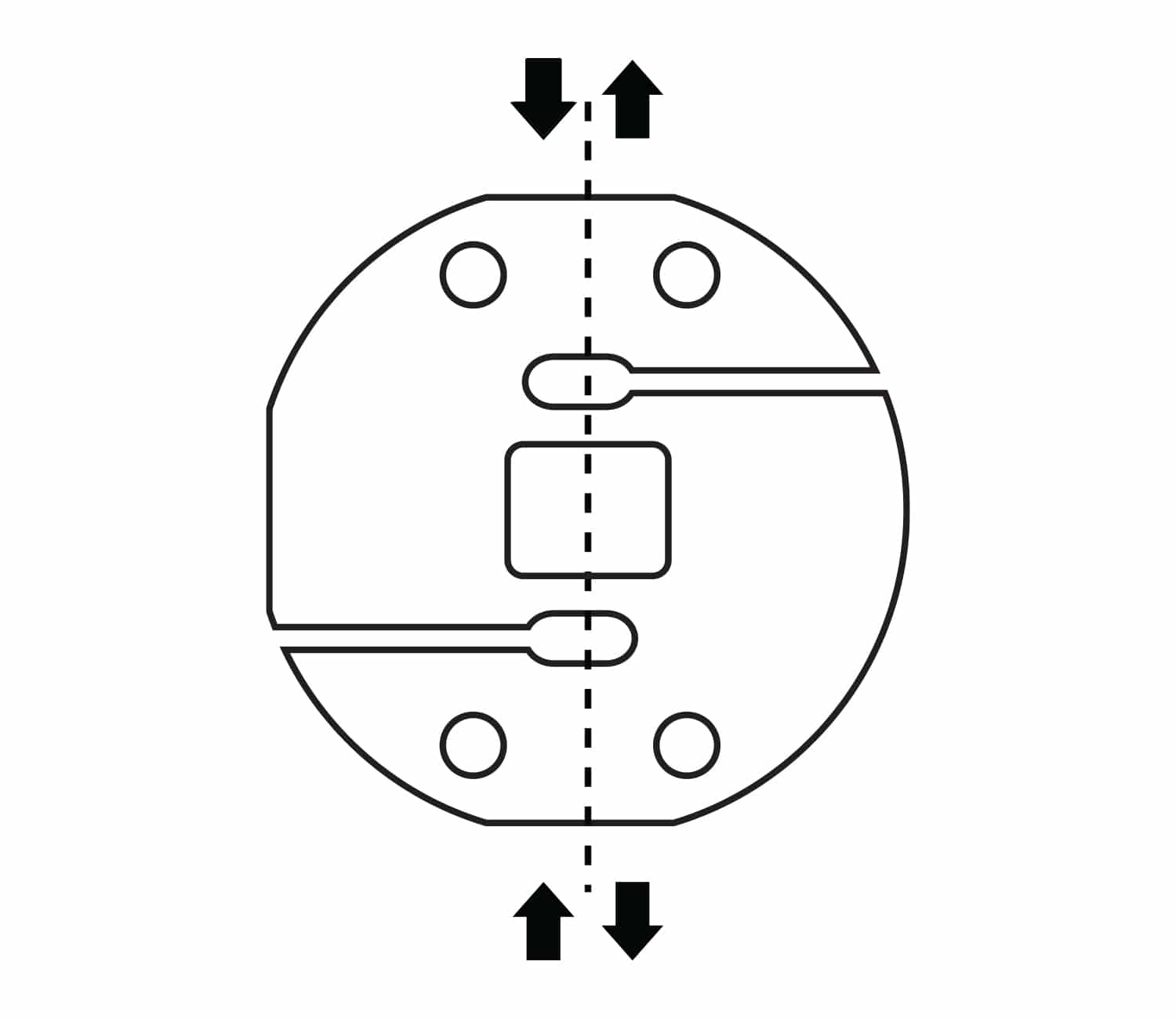

    Load Application Layout :

    Cable Connection Details :

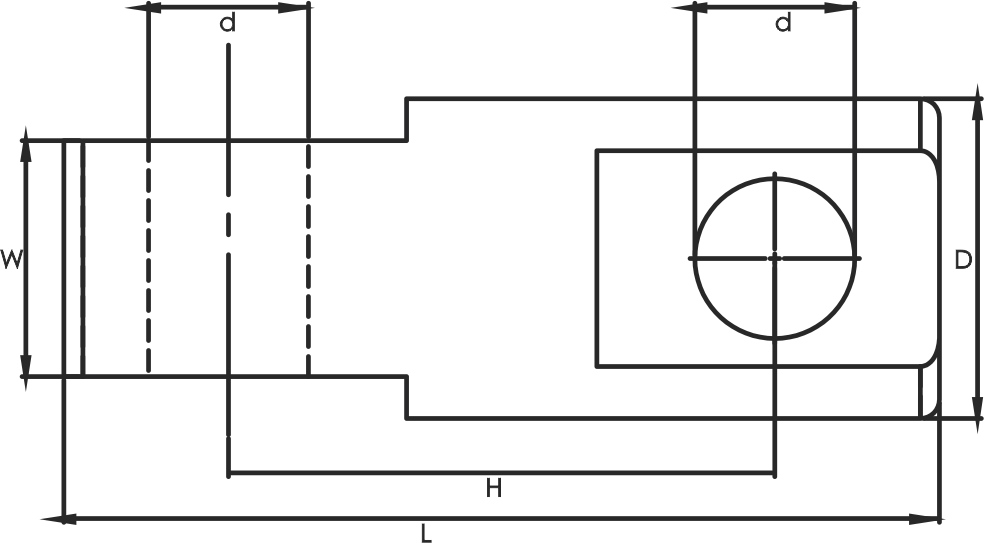

    Dimensions :

    * All dimension are in mm

    Capacity

    d

    D

    H

    W

    L

    10t

    36

    63

    134

    45

    200

    20t, 30t

    42

    88

    150

    58

    240

    40t

    59

    115

    195

    72

    320

    60t

    72

    147

    243

    102

    390

    125t

    84

    168

    287

    124

    460

    200t

    106

    210

    350

    145

    575

    300t

    135

    254

    465

    180

    810

    Parameters : (Analog Load Cell)

    Reted Load 10 / 20 / 30 / 40 / 125 / 200 / 300

    Excitation Voltage
    10 VDC - Maximum 15VDC
    Nominal Output
    1.0m V/V
    Non - Linearity
    <± 0.1% FSO
    Hysteresis
    <± 0.5% FSO
    Non-Repeatability
    <± 0.1% FSO
    Creep (30min)
    <± 0.1% FSO
    Zero Balance
    <± 0.1% FSO
    Input Resistance
    775± 15 ohms
    Output Resistance
    700± 3 ohms
    Finish & Construction
    Electroless Nickel Plated tool Steel
    Insulation Resistance (50 VDC)
    5 VDC - Maximum 15VDC
    Cable Length (4 Core Screened)
    5 Meters
    Nomiral Output
    1.0 m V/V
    Safe Overload of Rated Capacity
    150%
    Ultimate Overload of Rated Capacity
    200%
    Allowable Side Load
    50%
    Temp. Compensated Range
    0.60°C
    Temperature Effect on Output
    <0.02 FSO/°C
    Temperature Effect on Zero
    <0.02 FSO/°C
    Defend Grade
    <0.4mm at FSO
