    Batch Controller

    We Manufacture RS – 104 in India

    The testing equipment must be equipped with an intelligent scale that is capable of computing all of the parameters with pinpoint precision in order for it to be precise. It is also important to note that a load cell test system is a fantastic appliance that has been designed using the newest and most complicated technology presently available on the market and is a must-have.

    According to the label affixed to the machine, the model number of the machine is RS-104, and it may be found on the label. One of its primary advantages is that it is easy to set up and that it may be used in a number of various environmental conditions. Automatic or manual updating of nonvolatile memory load indicators is possible with NVO memory load indicators manufactured and provided by RS-104.

    RS-104 is well-known for creating and distributing high-quality nonvolatile memory load indicators. Digital I/Ps are more adaptable than analogue I/Ps, in addition to being more widely available and less costly than their analogue counterparts. The results are achieved by the use of only the highest-quality raw materials and the most cutting-edge technology presently accessible, which is designed by professionals and supervised by qualified personnel. You may acquire them whenever it is most convenient for you on the internet.

    ABOUT US:

    Contact Rudrra Sensors in India, we are a top-rated manufactures and supplies high and premium grade load indicators that are both manual and automatic tare controls. We give a product that is both innovative and long-lasting, with no negative consequences. There is no restriction on what you may talk about the product on this number. In addition, also we deliver a product of high quality.

    Contact us if you have any questions or concerns of any kind.

    Key Features :

    • Stainless steel and alloy steel are used in the construction of the structure.
    • Nickel plating is used to protect metal surfaces against corrosion.
    • It is possible to cope with a wide range of situations and events efficiently in this way.
    • The installation and usage of this device are both simple.

    Applications :

    • Scales that weigh trucks using electronic technology are available (also known as truck scales).
    • Truck scales, shopper scales, and other types of equipment are available.
    • Weighing Scales and Weighing Instruments with Electronics (not listed above)

    Optional :

    • Rs-104 -3 DO + 1 DI + M-bus
    • Rs-104 -3 DO + 1 DI + M-bus + Aout

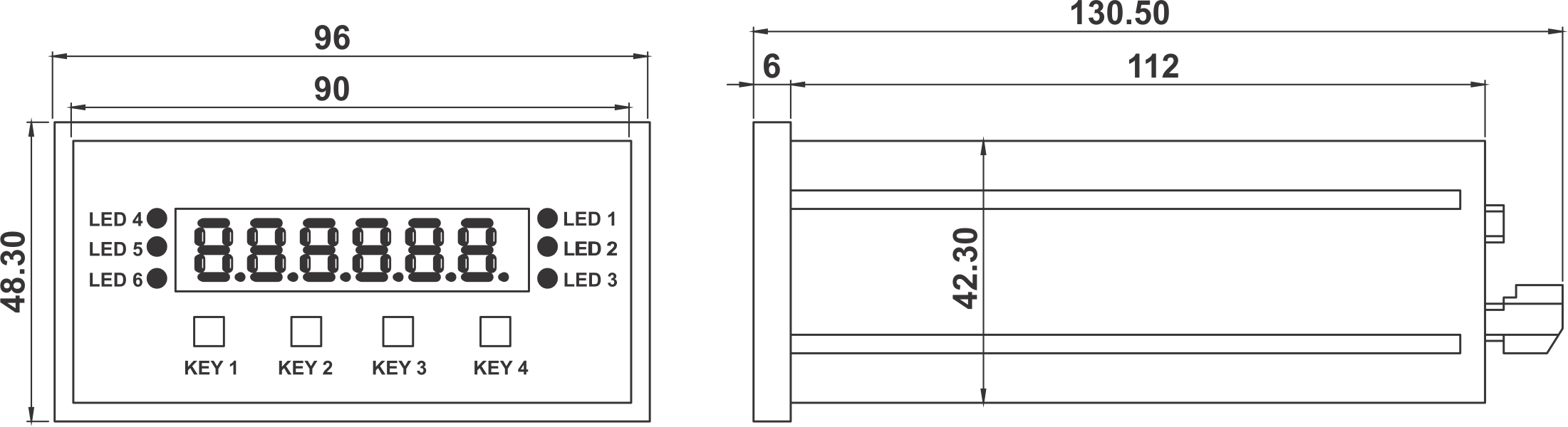

    Dimensions :

    Technical Specifications Table :

    GENERAL
    Power Supply
    24 VDC
    Inputs
    2 Units Analog (Power Supply, Load cell)
    Outputs
    16 Bit Analogue Output(0-5V,0-10V,4-20mA,0-20mA,0-24mA)
    Modbus RTU (RS485)
    3 DO, 2 DI
    DISPLAY
    Display
    6 Digit 7 Segment Display
    Display Step
    x1,x2,x5,x10,x20,x50
    Decimal Display
    0.1,0.01,0.001,0.0001
    Keypad
    4 Units
    A/D CONVERTOR
    Type Converting
    24 bit Delta sigma
    Speed Display
    up to 1000 sps (user programmable)
    Precision
    1/1,00,000
    FILTER AND CALIBRATION
    Digital Signal Filter
    Programmable filter
    Anti-Vibration Filter
    Special Filter for Vibrated Environment
    Parametric Calibration
    Done While being connected to the Load cell with milivolt output
    Weighted Calibration
    With Standard Weights
    LOAD CELL
    Power Supply
    10 V DC
    Number of Load Cells
    4 units 350Ω or 8 units 700Ω
    Input Resistance min
    85Ω
    Output Signal at Max Load
    ≤ 4 mV/V
    Connection
    Connection with 4 or 6-Core Cable
    COMM.INTERFACE
    Serial Port
    RS 485
    AMBIENT AND EQUIPMENT
    Operating Temperature
    -10˚C ˜ +40˚C
    Humidity
    %85
    Box
    Panel Mounting Aluminium contruction
    Dimension
    48*96mm
