    Peak Load Indicator

    A safe load indicator may be used to determine the angle of the lifting equipment, the weight of the lifting equipment, and the height of the lifting equipment. The lifting equipment is managed in such a way that the manufacturer's safety recommendations are adhered to in order to do this. There are several situations in which the usage of load cell indicators is essential, such as when a human has to visually inspect the force, load, or weight measurement in a way that a computer cannot accomplish efficiently. To carry out this technique, you might utilize the RS – 101 LED Display Controller, which is available for purchase online.

    We have a special area of competence in the field of load indicators. We provide each and every one of our clients with a solution that is personalized to their individual needs and objectives. Our items are manufactured with care and attention to detail, and we do not take shortcuts on quality.

    Rudrra Sensors are not only designs and sells high-quality load indicators, but it also makes and sells load indicators that are stored in nonvolatile memory and are capable of being updated either manually or automatically. Load indicators are well-known for their dependability over extended periods of time, and ours is no exception. Also eligible for consideration is a bespoke request for Rudrra Sensor that is unique to the individual.

    Our goods are extremely robust and resistant to a broad variety of chemicals and external effects as a consequence of the aluminum composition of their construction. Our goods are created to order in order to ensure that they meet the specific needs of each and every one of our valued clients.

    ABOUT US :

    In the field of precision manufactured load cells, pressure transducers, and load indicators, Rudrra Sensors is one of the top manufacturers and suppliers in the world. We give a product that is both innovative and long-lasting, with no negative consequences.

    Contact us if you have any questions or concerns of any kind.

    Key Features :

    • Display with Six Digits
    • 0.05% of the full scale precision
    • Auto or manual control of the tare
    • Conversion of kilograms to newton
    • Industrial Grade Panel Mounted Cabinet
    • Using non-volatile memory in the field
    • Electricity: 230VAC, 50H

    Applications :

    • A compression test for tensile loads.
    • Load testing at maximum capacity
    • Testing until the breaking point
    • Indicator of Weight
    • Equipment for testing

    Optional :

    • High Precision control on request
    • Table Top or Panel Mount Cabinate
    • Peak Hold Display, RS-232C Port
    • Serial or Parallel port for Computer or Printer Interface

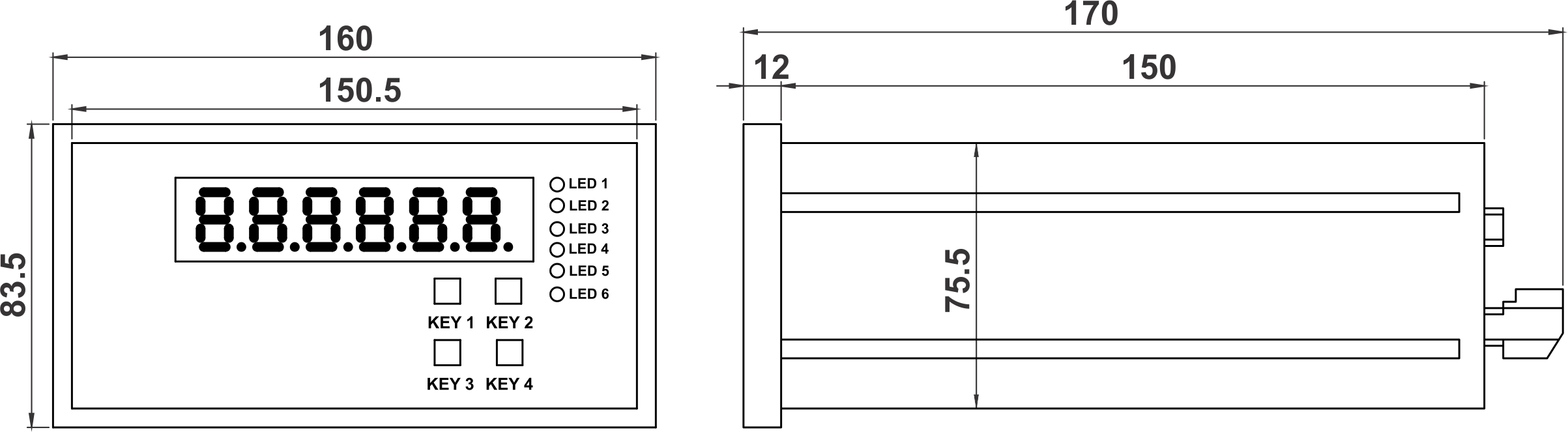

    Dimensions :

    Technical Specifications Table :

    GENERAL
    Power Supply
    220 VAC
    Inputs
    2 Units Analog (Power Supply, Load cell)
    Outputs
    RS-232
    UP to 4 Relay Output
    DISPLAY
    Display
    6 Digit 7 Segment Display
    Display Step
    x1,x2,x5,x10,x20,x50
    Decimal Display
    0.1,0.01,0.001,0.0001
    Keypad
    4 Units
    A/D CONVERTOR
    Type Converting
    24 bit Delta sigma
    Speed Display
    up to 600 sps (User Programmable)
    Precision
    1/1,00,000
    FILTER AND CALIBRATION
    Digital Signal Filter
    Programmable filter
    Anti-Vibration Filter
    Special Filter for Vibrated Environment
    Parametric Calibration
    Done While being connected to the Load cell with milivolt output
    Weighted Calibration
    With Standard Weights
    LOAD CELL
    Power Supply
    10 V DC
    Number of Load Cells
    4 units 350Ω or 8 units 700Ω
    Input Resistance min
    85Ω
    Output Signal at Max Load
    ≤ 4 mV/V
    Connection
    Connection with 4 or 6-Core Cable
    COMM.INTERFACE
    Serial Port
    RS 232
    AMBIENT AND EQUIPMENT
    Operating Temperature
    -10˚C ˜ +40˚C
    Humidity
    %85
    Box
    Panel Mounted Aluminium Encloser

    Peak Load Indicator
