    Weight Indicator

    Best RS – 102 Manufacturer in India

    RS-102 Load Cell Indicator by Rudrra Sensors, as seen by customer feedback, is well-liked by both end users and those responsible for the design and building of system components. Due to the fact that it is constructed of heavy-duty aluminum and steel, it is more robust in any environment.

    In order to calibrate and set up the radio's radios settings, two keys must be pressed simultaneously, and a third key must be pressed simultaneously in order to adjust the radio's 0.58-inch seven-segment display screen. Additionally, there are two extra digital inputs in addition to the four potential-free switches and the two digital inputs.

    A digital output with a voltage range of 0-10VDC or 0-5 percent DC voltage range is also supported by the device, as is compatibility for Modbus-485/RS232 communication protocols. Digital I/Ps are also easily accessible, and they are less expensive. These things are created by experts using only the highest-quality raw materials and the most up-to-date technology currently available.

    They are available for purchase online. There are several things that distinguish them from the rest of the competition, including their long-lasting finishes, exceptional performance, and precise measurements. We provide a large selection of safe load indicators in a range of sizes and types to fit your specific needs and specifications.

    ABOUT US

    When it comes to highly accurate load cells, pressure transducers, and load indicators, no one beats LoadMaster's market share dominance. No harmful side effects are associated with our high-quality products. Because of their chemical and impact resistance, durability, and stainless steel structure, our goods are in high demand. We take into mind the specific needs of our consumers when making our products.

    Contact us if you have any questions or concerns of any kind.

    Key Features

    • Voltage ranges from 85 VAC to 250 VAC.
    • Panel mounting setup for 75x150-inch panels
    • Connector for plugging in
    • Resolving to 24 bits internally with digital filtering
    • Analog out through direct o/p of RS-232b and RS-485
    • Connect up to four 350-volt load cells and eight 700-volt load cells.
    • Easy setup

    Applications :

    • Control of batches
    • Automated feeding systems for industrial use.
    • Equipment for testing
    • Pressure, stress, and torque are all types of force. Measurement

    Optional :

    • Rs-102 - 4Redius 1 l/p
    • Rs-102 + 4 Relay + 1 i/p + mpdbus
    • Rs-102 + 4 Relay + 1 i/p + Out
    • Rs-102 + 4 Relay + 1 i/p + Out + modbus

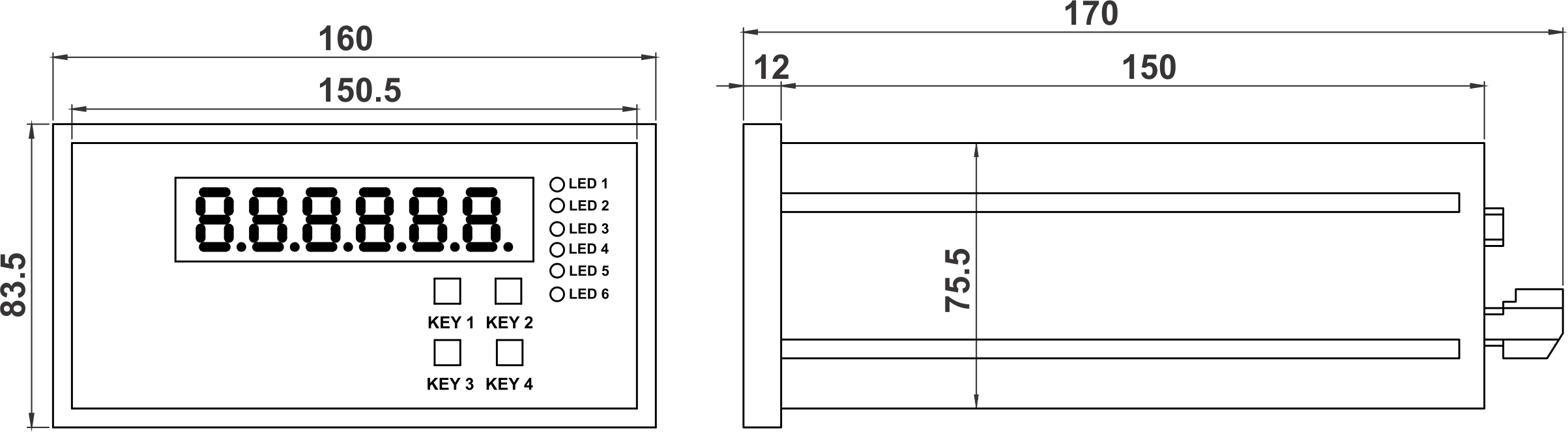

    Dimensions :

    Technical Specifications Table :

    GENERAL
    Power Supply
    100-240 A.C
    Inputs
    2 Units Analog (Power Supply, Load cell)
    Outputs
    16 Bit Analog Output(0-5V,0-10V,4-20mA,0-20mA,0-24mA)
    Modbus RTU(Rs485)
    RS-232
    UP to 4 Relay Output
    DISPLAY
    Display
    7 Segment Display
    Display Step
    x1,x2,x5,x10,x20,x50
    Decimal Display
    0.1,0.01,0.001,0.0001
    Keypad
    4 Units
    A/D CONVERTOR
    Type Converting
    24 bit Delta sigma
    Speed Display
    600 sps
    Precision
    1/1,00,000
    FILTER AND CALIBRATION
    Digital Signal Filter
    Programmable filter
    Anti-Vibration Filter
    Special Filter for Vibrated Environment
    Parametric Calibration
    Done While being connected to the Load cell with milivolt output
    Weighted Calibration
    With Standard Weights
    LOAD CELL
    Power Supply
    10 V DC
    Number of Load Cells
    4 units 350Ω or 8 units 700Ω
    Input Resistance min
    85Ω
    Output Signal at Max Load
    ≤ 4 mV/V
    Connection
    Connection with 4 or 6-Core Cable
    COMM.INTERFACE
    Serial Port
    RS 485,RS 232
    AMBIENT AND EQUIPMENT
    Operating Temperature
    -10˚C ˜ +40˚C
    Humidity
    %85
    Box
    Panel Mounted Aluminium Encloser
