Load Pin
Load pins get extensively used as a convenient way of monitoring forces within machines and equipment. They replace regular structural pins or bolts and measure the load burden these components experience.With an outstanding infrastructure and latest machinery technology, we have been manufacturing a wide range of Load Pin. Made up of high resistance stainless steel these are available in different sizes and designs. This product is a perfect combination of quality, price, and working performance. It can bear a maximum weight of up to 140 tons. High resistance stainless steel made these pins is used in different industries for various measurement applications.
In addition, precession constructed these load measuring pins are available in customer-specific. Our quality controller team is consistently checking its quality at every level of production, and it enables us to win the trust and satisfaction of the customer.
We have categories our range to enable our buyers to find the best suitable products, and they are as:
Low Profile Load Pin: We have expertise in crane scale load cell manufacturing and supplying in Ahmedabad, India.
Heavy Duty Load Pin: Industrial weighting checker used rope tension load cell also available with Rudrra Sensor. This load cell is designed for tension mode application only.
Feature Rich
Typical applications for a load pin extend across a wide array of industries. They include crane and hoist load/condition monitoring (where they often get referred to as a crane load cell) as well as numerous applications in the fields of safety, industrial measurement, and mobile machinery.Our typical load cell pin features the following:
- Stainless steel construction
- Potted (IP67 protection class) or hermetically sealed (IP68 protection class)
- The rated output of 0.5 – 1.5 mV/V
- Accuracy of 0.5 – 5%
- Rated capacities ranging between 1t and 10 t
- Supplied with or without integrated electronics
Here at Rudrra we can design and manufacture bespoke load pins to suit your specifications. For more information on our custom load pin solutions, please contact us.
Low Profile Load Pin
Measurement is the important base of all engineering calculation and Rudrra Sensor is there to help you by manufacturing and supplying precise Crane Scale Load Cell. The company is experienced over the years. In addition, these types of load cell pins are also known as the low profile load cell.
Generally, this Load pins are used for measuring force acting on a clevis joint pin-you can Replace the normal pin with our load measuring load pins. We can customize this load pins for your mechanical mounting and load electrical parameter requirement. Due to superior material selection and world class processing the endurance cycle repeatability and durability of product is guaranteed.
Download PDf File
Key Features
The device is portable and light in weight
It can be designed according to your dimensional needs
It is manufactured with high alloy tool steel to enhance the resistivity and shock
Applications :
Crane scale and hanging
Force measurement tension dynamometer
Material handling equipment
Pharma & Construction machinery
Optional :
Digital Load cell
Stainless steel structure
Customized available

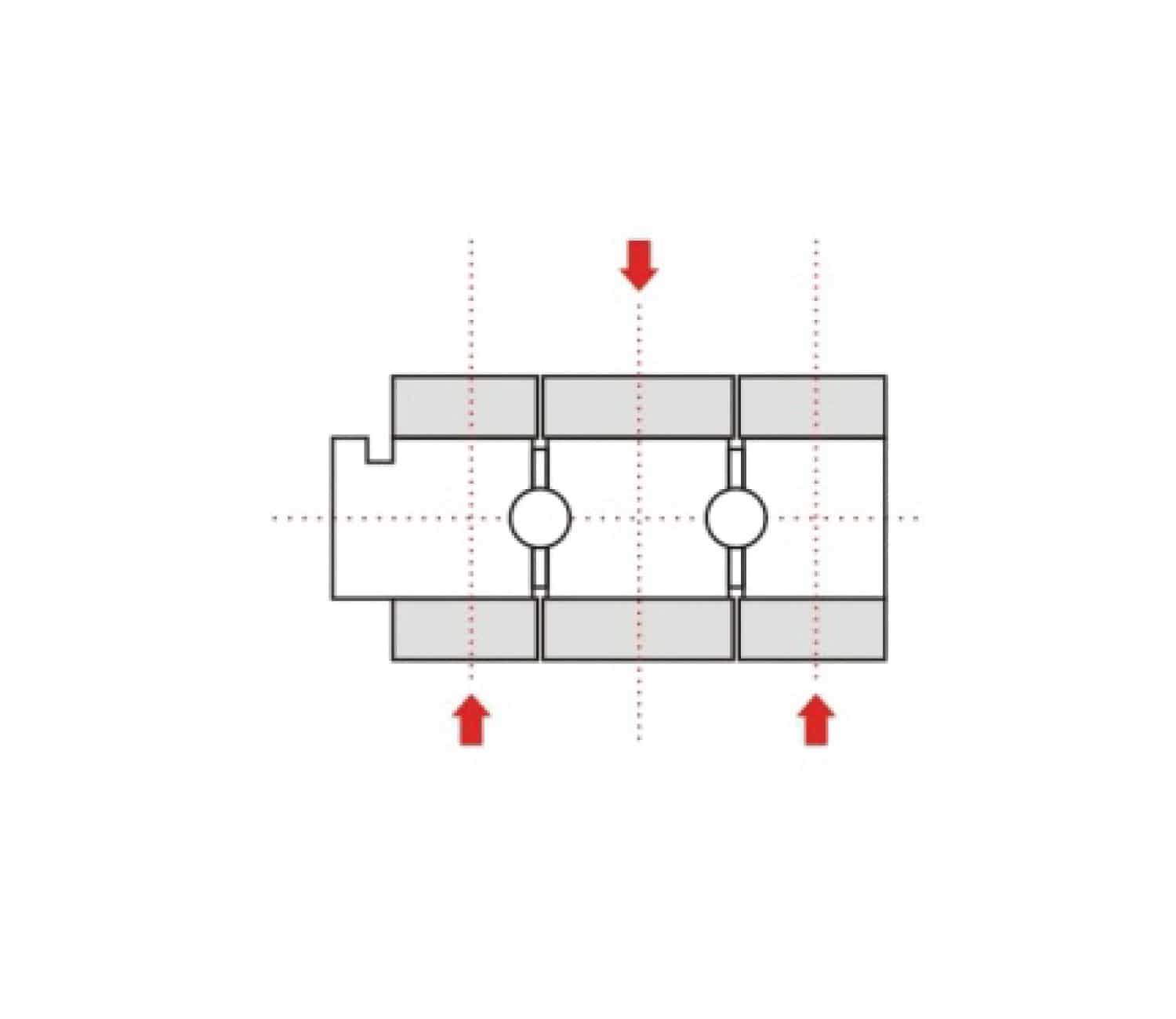

Load Application Layout :
Cable Connection Details :

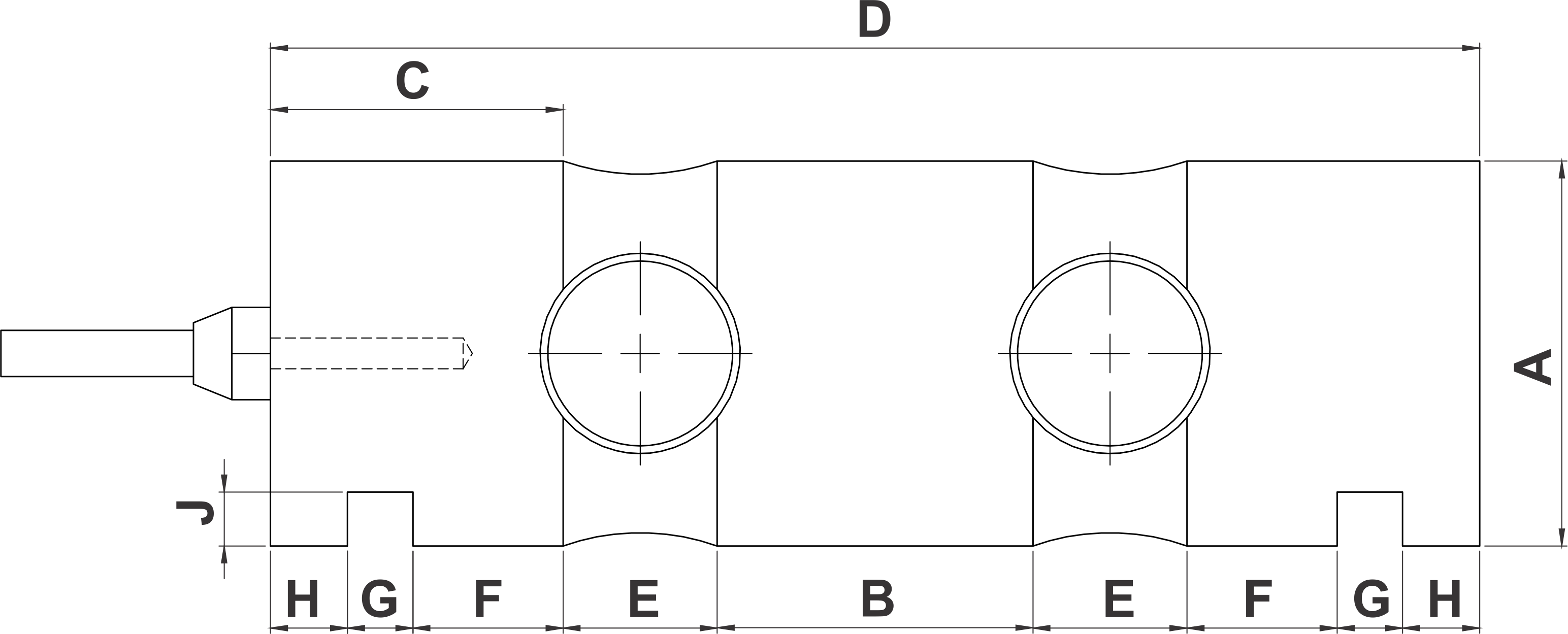

Dimensions :
Capacity | A | B | C | D | E | F | G | H | J |
500 KG, 1000 KG | 25 | 19 | 19 | 81 | 12 | 6.5 | 6.5 | 6 | 4.5 |
2T,3T,5T | 35 | 31 | 23.5 | 110 | 16 | 10 | 6.5 | 7 | 6 |
10T, 15T | 50 | 41 | 38 | 157 | 20 | 19.5 | 8.5 | 10 | 7 |
20T | 65 | 66 | 39 | 192 | 24 | 20.5 | 8.5 | 10 | 9.5 |
30T | 75 | 76 | 50.5 | 225 | 24 | 28 | 10.5 | 12 | 10.5 |
50T | 85 | 91 | 58.5 | 260 | 26 | 36 | 10.5 | 12 | 12 |
100T | 100 | 100 | 76 | 328 | 38 | 53.5 | 10.5 | 12 | 14 |
Parameters : (Analog Load Cell)
Related Load (kg.) 500 / 1000 / 2T / 3T / 5T / 10T / 15T / 20T / 30T / 50T / 100T
