    S-Beam Load Cell

    What is RSL 301?

    The S Beam Load Cell (RSL 301) is one of the simplest products of Rudra you'll be able to count upon. The options of the merchandise factory-made by the professional engineers at Rudra are at par with the international standards and therefore the better part is that every one of the advanced technologies ar embedded into one. the subsequent options of the S Beam Load Cell (RSL 301) are bound to persuade you that this is often one in all the simplest within the industry.

    The S Beam Load Cell (RSL 301) is one of the best products of Rudrra you can count upon. The features of the product manufactured by the expert engineers at Rudrra are at par with the international standards and the best part is that all the advanced technologies are embedded into one. The following features of the S Beam Load Cell (RSL 301) are sure to convince you that this is one of the best in the industry:

    • Different capacities from 10 kg to 5,000kg.

    • This easy functioning product can be applied in both tension and compression.

    • The product is sealed in glue while the welding has been done keeping in mind the IP67 as well as IP68 standards.

    • The product has been designed with alloy steel finish which calls for its sturdiness and durability.

    • You can easily install it at your workplace for the best performances every time.

    • The product is suitable for applications such as tank and hopper weighing, and it can also be used as a machine that tests tension or compression load.

    Features :

    • It is used to construct alloy steel. When other elements comprising metals and non-metals are added to carbon steel alloy steel is formed.
    • It is very easy to install on any wall or anywhere else and use for both tensile and compression application
    • It is Installed on the wall using a glue sealer and welding to IP67 & IP68

    Applications :

    • RSL 301 is a very suitable product for hanging scale
    • It also has a tension testing machine.
    • For feedback, devices use vibrations.
    • It has tank weighing.
    • It also has hopper weighing and many more.

    Optional :

    • Digital Load cell
    • Stainless steel structure
    • Self aligned rod end bearing for hanging application

    Load Application Layout :

    Cable Connection Details :

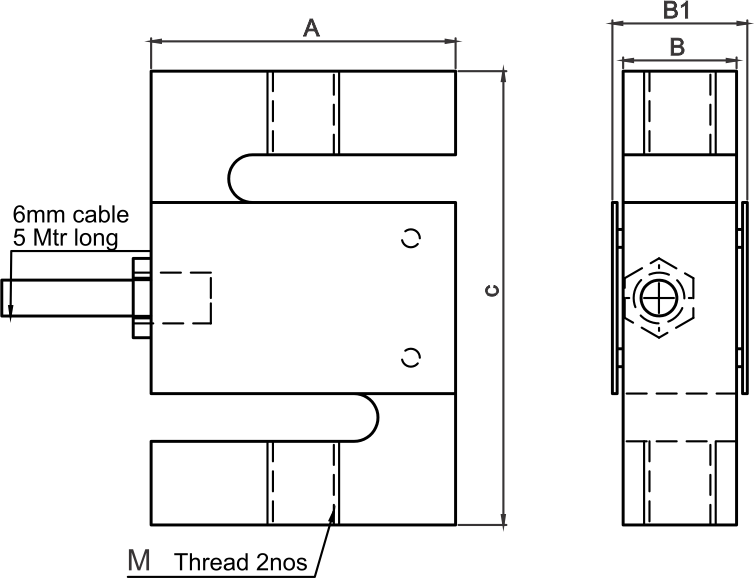

    Dimenstions :

    Model

    CAPACITY

    A

    B

    B1

    C

    M

    301

    • 10KG To 100KG

    • 100KG To 300KG

    • 450KG To 500KG

    • 2000KG To 5000KG

    • 51

    • 51

    • 51

    • 76

    • 13

    • 19

    • 19

    • 28

    • 15

    • 19

    • 21

    • 28

    • 64

    • 76

    • 76

    • 100

    • M6*1

    • M12*1.75

    • M12*1.75

    • M18*1.5

    301A

    • 10KG To 100KG

    • 100KG To 300KG

    • 450KG To 1500KG

    • 2000KG To 5000KG

    • 51

    • 51

    • 51

    • 76

    • 13

    • 19

    • 19

    • 28

    • 15

    • 19

    • 21

    • 28

    • 64

    • 76

    • 76

    • 100

    • M6*1

    • M12*1.25

    • M12*1.25

    • M20*1.5

    301AD

    10KG To 100KG

    51

    19

    21

    64

    M12*1.25

    Parameters : (Analog Load Cell)

    Reted Load (kg.) 5, 10, 15, 20, 50, 100, 200, 300, 500, 1T, 2T, 3T, 5T

    Precision
    C2
    Composition Error
    ± 0.03
    Rated Output (mv/v)
    2.0 ± 0.05 & 3.0± 0.05
    Creep (%FS/30min)
    ± 0.024
    Zero Balance (%FS)
    2.0
    Input Resistance (Ω)
    390 ± 10
    Output Resistance (Ω)
    350 ± 2
    Insulation Resistance (MΩ)
    5000
    Excitation Voltage (V)
    9~12 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -10~+55
    Temp. Effect on Zero (%FS/10°C)
    + 0.023
    Temp. Effect on Span (%FS/10°C)
    + 0.02
    Safe Overload (%FS)
    150
    Ultimate Overload (%FS)
    200
    Defend Grade
    IP67
