    Shear Beam Load Cell

    Single Ended Shear Beam Load Cell ( RSL 803 )

    Rudrra device is that the most full-fledged, sure and suggested single complete shear beam load cell manufacturer and provider among the all thanks to unmatched product quality, bottom costs and best client support. This 803 model specially designed for the robust connation like truck RSL scale, it's capable to figure in numerous environmental conditions with none difficulties. This is manufactured from the high grade chrome steel and supreme quality staple. It’s appropriate for all high capability weight applications. The shoppers will avail it in numerous sizes with appropriate capability.

    Rudrra sensor is the most experienced, trusted and recommended single ended shear beam load cell manufacturer and supplier among the all due to unmatched product quality, bottom prices and best customer support. This RSL 803 model specially designed for the tough relevance like truck scale, it is capable to work in different environmental conditions without any difficulties. This is fabricated from the high grade stainless steel and supreme quality raw material. It is suitable for all high capacity weighting applications. The clients can avail it in different sizes with suitable capacity as shown in the below table, furthermore the all technical details about it, is given in the below table and figures.

    Features:

    • Alloy steel construction and waterproof with hermetically sealed by welding to IP67 & IP68.
    • Equipped with a Full range of capacities.
    • Simple to construct.
    • Also has digital load cell
    • Stainless Steel construction.

    Applications:

    • It has an Electronic platform scale that works very efficiently.
    • It also has a Vehicle scale.
    • It also consist Railroad scales.
    • Along with Tank weighing.
    • Tank weighing and many more.
    • Flexible weighing solutions.
    • Light-duty platform scales.
    • Hopper scales.

    Optional:

    • Digital Load Cell
    • Stainless Steel Structure
    • Load Cell Mounting Assembly

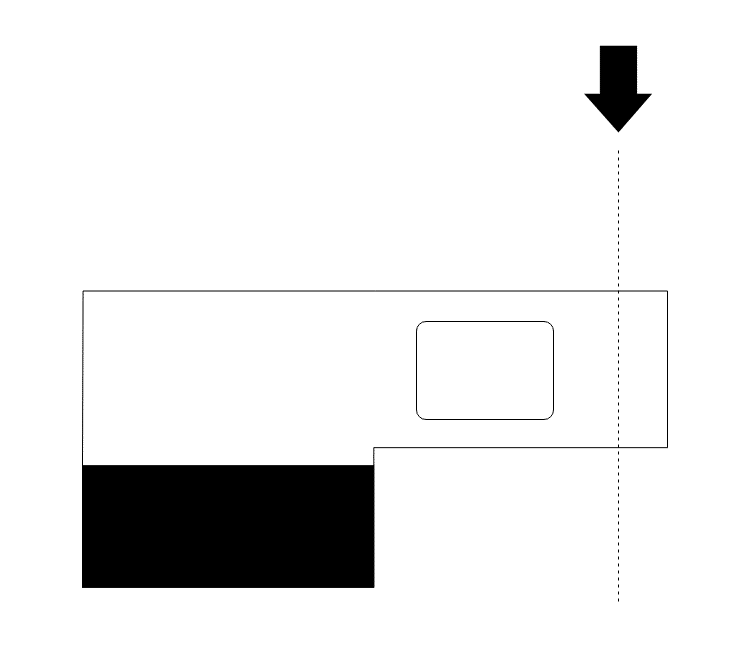

    Load Application Layout :

    Cable Connection Details :

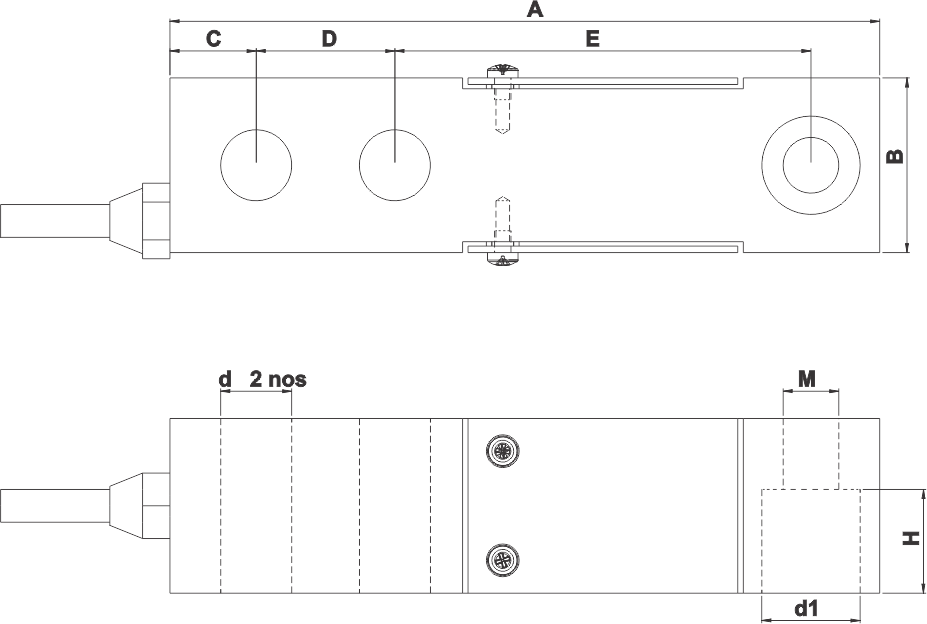

    Dimenstions:

    Rated Load (Kg)

    A

    B

    C

    D

    E

    M

    d2

    d1

    50 Kg to 2000 Kg

    130

    32.0

    15.8

    25.4

    76.2

    M12*1.75

    18

    13

    3000 Kg to 5000 Kg

    171.5

    38.0

    19.8

    38.1

    95.3

    M18*1.5

    20

    20

    10000 Kg

    225.5

    50.8

    25.3

    50.8

    124

    M24*2

    27

    27

    Parameters : (Analog Load Cell)

    Related Load (kg.) 50 / 100 / 200 / 300 / 500 / 750 / 1T / 2T / 3T / 5T / 10T

    Precision
    C2/C3
    Composition Error
    ± 0.03 / 0.02
    Rated Output (mv/v)
    3 ± 0.0002
    Non-Linearity (%FS)
    0.03 / 0.02
    Hysteresis (%FS)
    0.03 / 0.02
    Repeatability (%FS)
    0.02 / 0.01
    Creep (%FS/30min)
    0.03 / 0.02
    Zero Balance (%FS)
    ± 1
    Input Resistance (Ω)
    350 ± 5
    Output Resistance (Ω)
    350 ± 3
    Insulation Resistance(M Ω)
    ≥5000(100VDC)
    Excitation Voltage (V)
    5~15 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -20~+55
    Temp. Effect on Zero (%FS/10°C)
    0.019
    Temp. Effect on Span (%FS/10°C)
    0.011
    Safe Overload (%FS)
    120
    Ultimate Overload (%FS)
    150
    Defend Grade
    IP67/IP68
    Cable
    4mm, 3mtr
