    Stainless Steel Load Cell

    What is RSL 810

    • It has a tool steel construction for a tough job
    • A low-profile person is someone who is not very well
    • Off-center loading
    • Single point Capability with very little error.
    • Allow the platform to grow.
    • Small, light, and cheap

    The Stainless Steel Load Cell (RSL 810) was made with this in mind: Our clients should only get the best from us. If you have a lot of steel or platform scales, this is the best thing for you.

    Features like these will help you understand what the equipment is all about:

    Heavy Platform Load Cell RSL 810

    • This product has been made to be small and light so that it can be used easily.
    • It's so low-profile that the manufacturers have done a great job.
    • It's made of the best tool steel, which makes it the best at what it does.
    • This has a support platform that can be up to 900 x 900 mm wide and long.
    • It is very durable, has a great finish, and is very easy to clean and maintain. Because of this, it can be clearly seen that the people who made the tool were very careful when they chose the best materials to use.
    • People can buy the equipment online for a reasonable price.
    • The low-profile nature of the equipment makes it perfect for any job it can do.

    The Stainless Steel Load Cell (RSL 810) has been designed keeping in mind that our clients should get only the best from our end. This product is absolutely perfect for large platform scales as well as steel weighers.The following characteristics of the product shall further describe the true nature of the equipment:

    Therefore, it can be seen clearly that we at Rudrra have been very careful in selecting the best materials while designing the tool. The low profile nature of the equipment is perfect for its application in every purpose. The product is available at a reasonable price range online.

    • This product has been designed to be compact and also light weight for easy application

    • The manufacturers have made it awesomely low profile

    • The supreme tool steel built makes it undisputable in performance

    • This has a support platform scale that ranges up to 900 x 900 mm

    • It is highly durable, superior in finishing, an easy to maintain and clean.

    Optional:

    • Stainless Steel Structure

    Load Application Layout :

    Cable Connection Details :

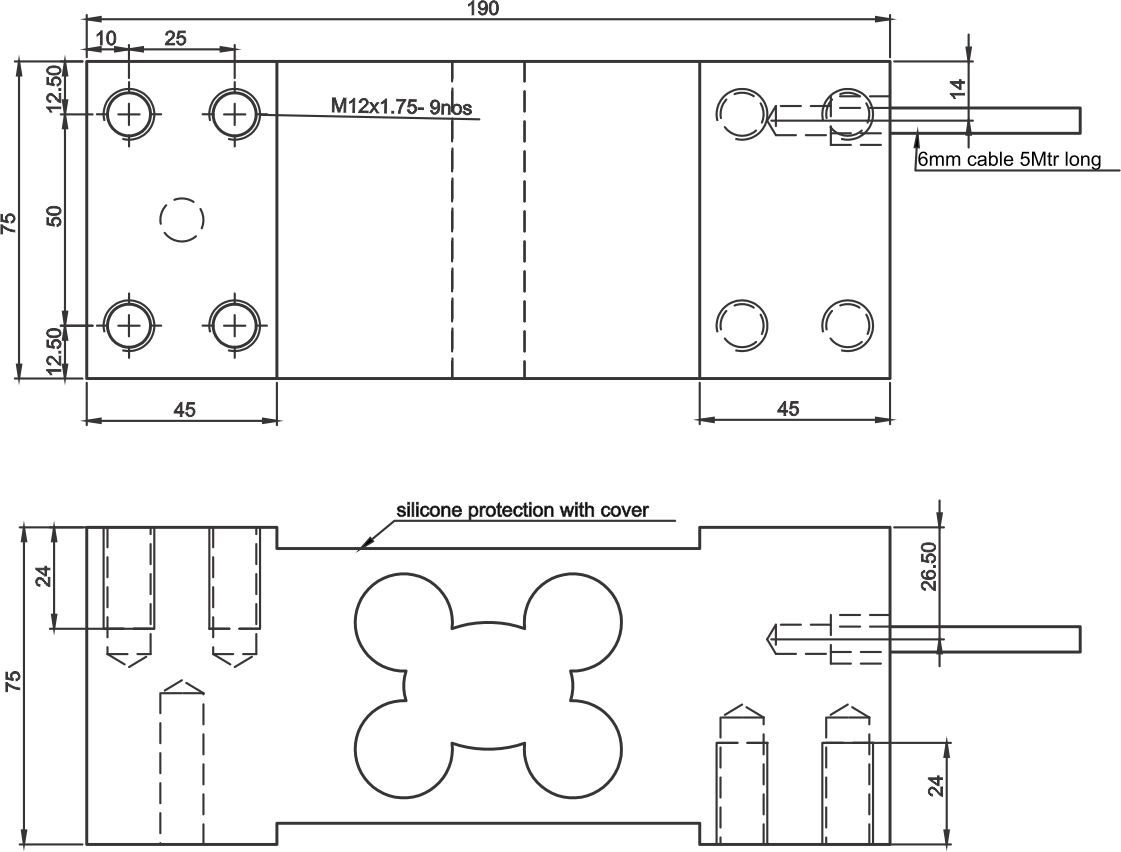

    Dimensions :

    Parameters : (Analog Load Cell)

    Related Load (kg.) 100, 300, 500, 750, 1000, 1500, 2000, 3000

    Precision
    C2 / C3
    Composition Error
    0.03 / 0.02
    Rated Output (mv/v)
    2.0 ± 10%
    Non-Linearity (%FS)
    0.025
    Hysteresis (%FS)
    0.01
    Repeatability (%FS)
    0.02 / 0.01
    Creep (%FS/30min)
    0.03 / 0.02
    Zero Balance (%FS)
    ± 1.0
    Input Resistance (Ω)
    400 ± 10
    Output Resistance (Ω)
    350 ± 2
    Insulation Resistance(MΩ)
    ≥20000(100VDC)
    Excitation Voltage (V)
    9~15 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -20~+60
    Temp. Effect on Zero (%FS/10°C)
    0.0020
    Temp. Effect on Span (%FS/10°C)
    0.0015
    Safe Overload (%FS)
    150
    Ultimate Overload (%FS)
    250
    Defend Grade
    IP67
    Cable
    6mm, 5mtr
