Storage Silo Load Cell
About Top-Quality RSL 112 RND
RSL 112 RND double ended shear beam load cell is low profile and is strain gauge based for Tank, Silo, Hopper weighing. It is made from high alloy tool steel for heavy over load and impacts. gauge area is fully protected for IP 68 protection class.
Download PDf File
ABOUT US :
Aside from that, Rudrra Sensors manufactures, RSL 112 RND, distributes, and supports high- and premium-grade load indicators with both manual and automatic tare control options. One of the world's leading manufacturers and providers of precision-machined load cells, pressure transducers, and load indicators is Load Masters. If you want to buy RSL 112 RND and load indicators then you can buy through our website. Here, are many product we deliver is both innovative and long-lasting, and it comes with no bad implications.
Contact us if you have any questions or concerns of any kind.
Key Features :
The end-mounted and center-loaded design improves the stability and precision of the system. It is temperature adjusted for temperatures ranging from 0 to 60 degrees Celsius.
Applications :
Hopper , Tank , Silo Weighing
Onboard Weighing
Steel Weigher
Tensile Testing
Truck Weighing
Optional :
Digital Load cell
Stainless steel structure
Load cell mounting assembly provided on request
Load Application Layout :
Cable Connection Details :

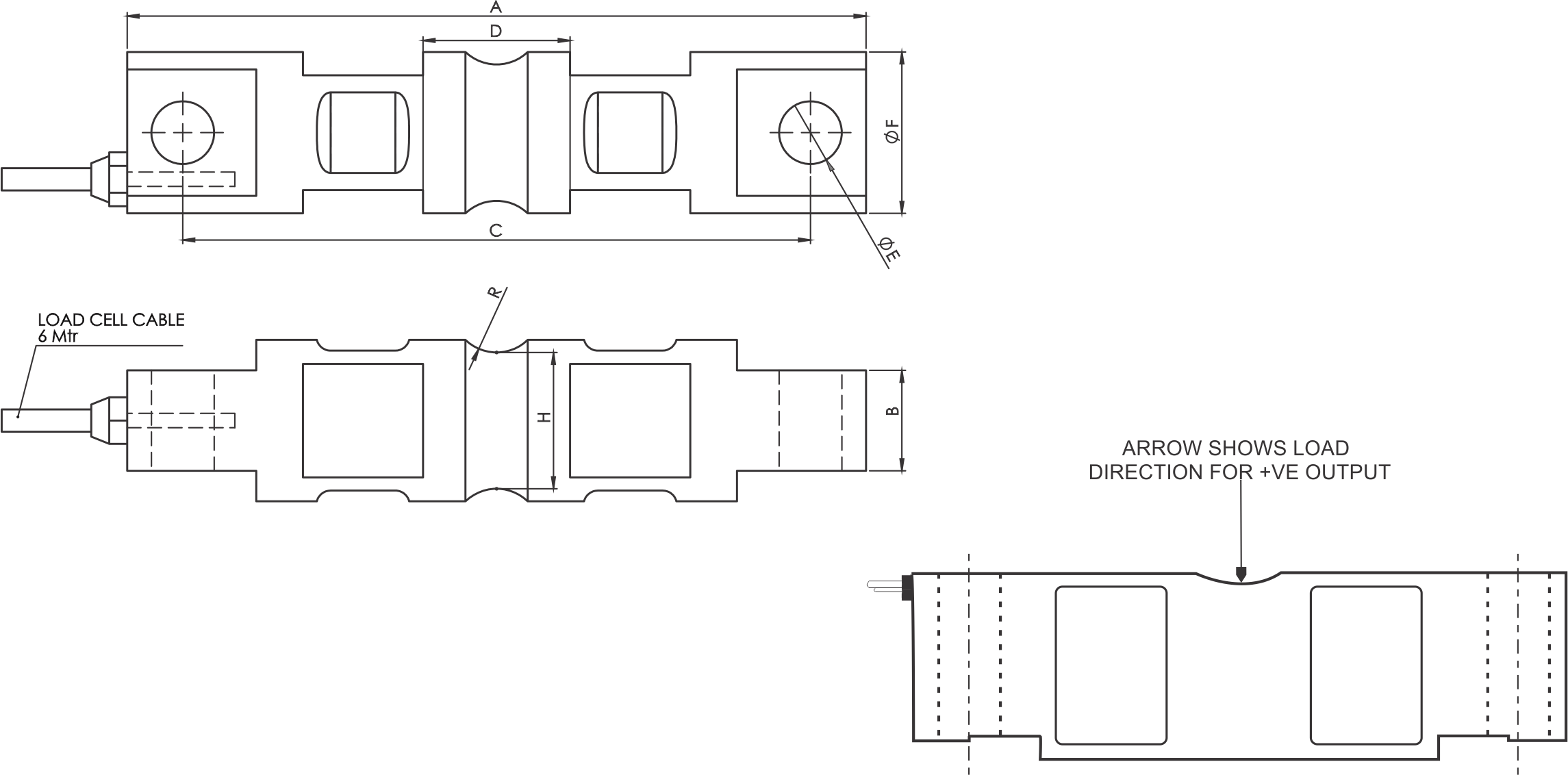

Dimensions :
CAPACITY | A | B | C | D | E | F | G | H |
2T, 5T, 7.5T, 10T | 206 | 28 | 175 | 41 | 17 | 45 | 12.5 | 38 |
20T To 30T | 260 | 60 | 216 | 35 | 25 | 78 | 25 | 70 |
Parameters : (Analog Load Cell)
Standard Capacities (tf.) 2 / 5 / 7.5 / 10 / 20 / 30
