    Testing Machine Load Cell

    RSL 203 Manufacturer and Supplier in India

    Pancake RSL 203 Load Cells are capable of supporting a wide range of applications, including endurance, off-center loading, and inline applications. As a result of their ability to be installed in regions with limited space, pancake load cells are among the most commonly used forms of force monitoring equipment.

    Because of the nature of the testing equipment, it is necessary to employ a smart scale that is capable of performing precise calculations. The load cell testing machine is another excellent appliance that is manufactured using the most cutting-edge and modern technology available in this field. The model number for this equipment is RSL 203, which stands for RSL 203.

    It is easy to set up and may be used in a wide range of different types of contexts due to its simplicity. The low-profile, high-precision tension and compression pancake load cells are perfect for measuring forces in both directions because of their low profile and accuracy. Some pancake compression load cells, which are designed just to measure compression forces, can give digital or analogue outputs.

    RSL 203 The load cells in the collection of testing equipment are constructed of a durable material. In addition, it has a clear design and structure. The goods are made with high-quality product materials in order to ensure that the final quality of the product is maintained before it is delivered to the customers.

    ABOUT US

    In addition to designing, manufacturing and supplying high quality RSL 203 in India and abroad, Rudrra Sensors is the best manufacturer and supplier of high and premium quality load indicators and load cells. Our RSL 203 and other sensors are both innovative and long-lasting, with no negative consequences. Get in touch with experts to learn more about our company and our products. When you contact us to buy load cells or any other products like RSL 203, there is no restriction on what you may talk about the product quantity.

    Contact us if you have any questions or concerns of any kind.

    Features :

    • The construction is made of alloy steel and stainless steel.
    • Nickel plating is used.
    • Suitable for use in a variety of situations
    • It is simple to set up and use

    Applications :

    • Electronic truck scales (also known as truck scales).
    • Truck Scales, Hooper Scales, and other similar equipment
    • Other Electronic Weighing Devices (not listed above)

    Optional :

    • Digital Load cell
    • Stainless steel structure

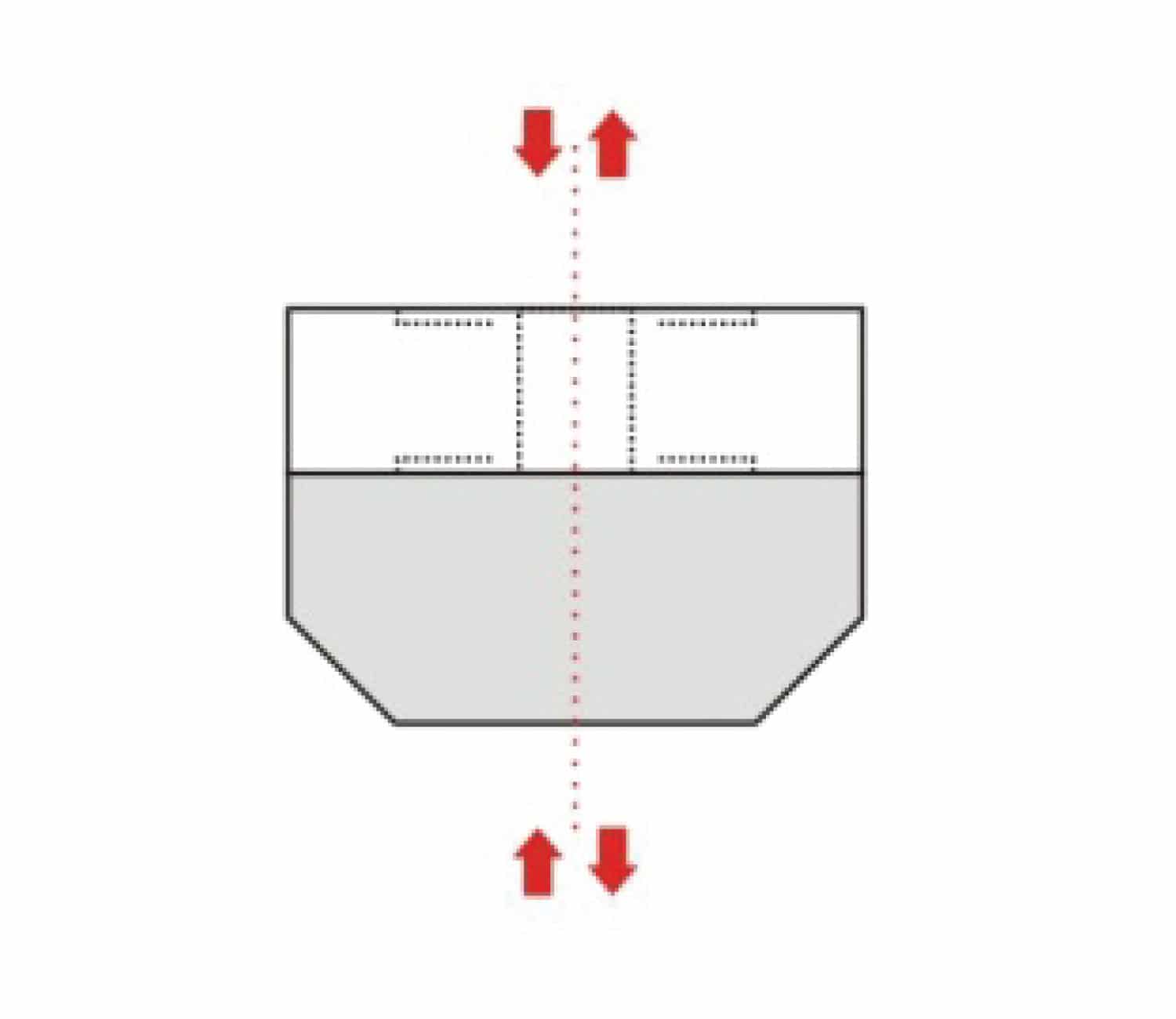

    Load Application Layout :

    Cable Connection Details :

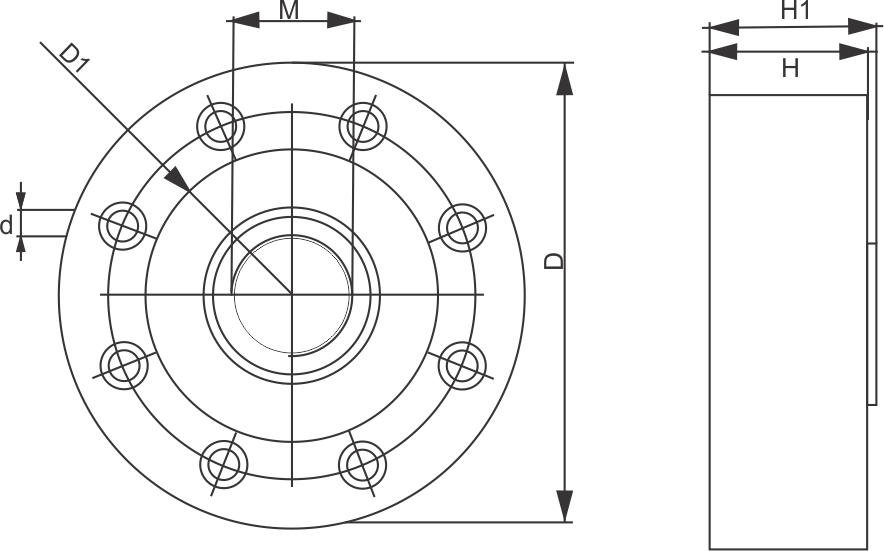

    Dimenstions:

    Parameters : (Analog Load Cell)

    Related Load (Ton) 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100

    Precision
    C2
    Composition Error
    ± 0.03
    Rated Output (mv/v)
    2 ± 0.008
    Non-Linearity (%FS)
    0.017
    Hysteresis (%FS)
    0.02
    Repeatability (%FS)
    0.01
    Creep (%FS/30min)
    0.03
    Zero Balance (%FS)
    ± 1
    Input Resistance (Ω)
    750 ± 10
    Output Resistance (Ω)
    700 ± 5
    Insulation Resistance(MΩ)
    ≥5000(100VDC)
    Excitation Voltage (V)
    5~12 (DC)
    Compensated temp. Range (°C)
    -10~+40
    Use Temp. Range (°C)
    -20~+55
    Temp. Effect on Zero (%FS/10°C)
    0.05
    Temp. Effect on Span (%FS/10°C)
    0.03
    Safe Overload (%FS)
    150
    Ultimate Overload (%FS)
    200
    Defend Grade
    IP67/ IP78
    Cable
    6mm, 10mtr
